What are the different types of Electric Underfloor heating?
What Are the Different Types of Electric Underfloor Heating?
Electric underfloor heating is not one single product type. Different systems are designed for different floor finishes, room layouts and installation methods. This guide compares StickyMat and EcoFloor heating mats, loose wire, foil heating, carbon film, decoupling membrane systems and in-screed electric underfloor heating so you can choose the best electric underfloor heating route for your project.
The best system depends on your final floor finish, the shape of the room, how much build-up height you have available and whether the project is a quick retrofit, bathroom renovation, kitchen upgrade, extension or new build. A tiled bathroom, laminate bedroom and screeded extension will usually need different electric UFH routes.
The main electric underfloor heating types are heating mats, loose wire, foil systems, carbon film heating, decoupling membrane systems and in-screed cables. Match the system to the floor finish first, then check room shape, build-up and controls.
What Is Electric Underfloor Heating?
Electric underfloor heating is a floor heating system powered by electricity rather than hot water pipes. The heating element may be supplied as a pre-spaced mat, a free-laid cable, a foil system, a carbon film layer, a cable-in-membrane system or a cable designed to sit within screed.
That is why phrases such as electric underfloor heating systems, underfloor electric heating, electrical underfloor heating and electric floor heating all sit within the same category, but they do not all describe the same installation method.
How electric underfloor heating works
Start with the floor finish, room shape and available build-up height.
Use the correct insulation, membrane, adhesive or dry-build layer.
A thermostat and floor sensor help manage comfort and floor protection.
The floor warms evenly and radiates comfort into the room.
The Main Types of Electric Underfloor Heating
If you are asking what are the different types of electric underfloor heating?, these are the core electric UFH systems most buyers should compare before choosing.
| System Type | Best For | Typical Floor Finish | Why Buyers Choose It |
|---|---|---|---|
| StickyMat and EcoFloor Heating Mats | Regular-shaped rooms and faster installs | Tile and stone | Quick roll-out installation with pre-spaced cable |
| Loose Wire | Awkward or irregular room layouts | Tile and stone | Flexible cable spacing around fixtures and odd spaces |
| Foil Heating | Floating floors and dry builds | Laminate, engineered wood and selected floor build-ups | Low-build dry installation for floating floor projects |
| Carbon Film Heating | Large floating-floor zones | Laminate and engineered wood in dry rooms | Slim, even heating across larger floor areas |
| Decoupling Membrane Systems | Tiled floors where crack protection matters | Tile and stone | Heating plus a membrane layer for tiled floor performance |
| In-Screed Electric Heating | New builds and major renovations | Screed or concrete floor builds | Useful where the project is being built up from scratch |
1. StickyMat and EcoFloor Heating Mats
Heating mats are often the easiest electric underfloor heating systems to understand. The heating cable is pre-spaced on a mesh, which helps speed up installation in bathrooms, kitchens and regular-shaped tiled rooms.
2. Loose Wire
Loose wire gives more freedom in rooms with awkward shapes, curves or lots of fixed fixtures. It takes longer to lay than a mat, but the flexibility is the point.
3. Foil Heating
Foil heating is usually chosen for floating floor build-ups rather than tiled adhesive installs. It is especially useful beneath laminate and engineered wood projects.

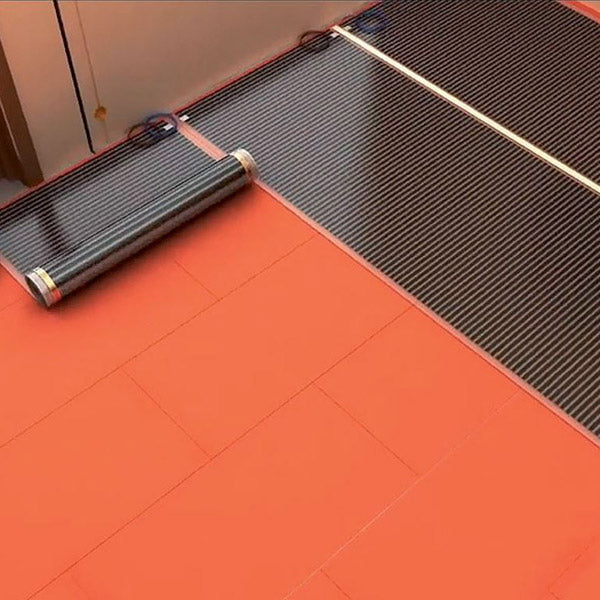

4. Carbon Film Heating
Carbon film is a slim dry system for floating floors, often chosen where a broad, low-profile heating layer is wanted across larger areas.
5. Decoupling Membrane Systems
Decoupling systems combine electric heating with a membrane route, making them useful for tile projects where floor movement and crack-management are part of the planning.
6. In-Screed Electric Heating
In-screed systems are usually more relevant in new builds, extensions or bigger floor rebuilds where a deeper floor construction is already planned.
Products for the Main Electric Underfloor Heating Types
These products sit directly under the six main electric UFH types above, helping buyers move from system choice to a suitable product route.
A fast-install undertile heating mat for bathrooms, kitchens and regular-shaped tiled rooms.
A flexible cable system for irregular-shaped tiled rooms and detailed layouts.
A decoupling membrane heating system suited to tiled floors and professional installations.
A dry electric underfloor heating system for floating floors such as laminate and engineered wood.
A complete low-build carbon film system for floating floors and dry installations.
A durable in-screed system for new build, extension and deeper floor build-up projects.
Which Electric Underfloor Heating Is Best by Room?
Most buyers do not need every system. They need the system that fits their room. Start with the floor finish, then check the layout.
| Room / Project | Usually Best Electric UFH Route | Why |
|---|---|---|
| Bathroom | StickyMat, EcoFloor or loose wire | Tiled rooms usually suit cable-in-adhesive style systems very well |
| Kitchen | StickyMat, EcoFloor, loose wire or DCM-PRO | Depends on layout and how many fixed units reduce heated area |
| Irregular en-suite or awkward tiled room | Loose wire | More flexibility around fixtures and unusual shapes |
| Laminate bedroom | Foil or carbon film | Dry systems suit floating floors better than tiled systems |
| Engineered wood living room | Foil or carbon film | Good for floating floors and larger dry areas |
| Tiled floor needing extra crack-management confidence | Decoupling membrane system | Popular when tile protection and heating are both priorities |
| New build or major extension | In-screed electric heating | Works when the floor build-up is being created from scratch |
StickyMat and EcoFloor vs Loose Wire
This is one of the most useful comparisons because many buyers are choosing between these two tiled-floor routes rather than between completely different heating categories.
| Feature | StickyMat and EcoFloor | Loose Wire |
|---|---|---|
| Installation speed | Usually faster in open, regular-shaped rooms | Usually slower because spacing is laid manually |
| Best room shape | Square or rectangular spaces | Irregular spaces with lots of fixtures |
| Layout flexibility | Good, but guided by the mat format | Excellent |
| Bathrooms and kitchens | Very strong option | Very strong option where shapes are awkward |
| Buyer type | People wanting simpler, quicker layout | People needing flexibility more than speed |
If the room is fairly regular, StickyMat and EcoFloor are often the easy answer. If the room shape looks like a floor plan had an argument with itself, loose wire often becomes the better route.
Carbon Film vs Foil Underfloor Heating
For floating floors, the more useful comparison is often carbon film vs foil heating rather than comparing those systems with tiled mats. Both are usually dry systems, but they are not identical in how buyers think about them.
| Feature | Carbon Film | Foil Heating |
|---|---|---|
| Best use | Larger floating-floor dry zones | Floating floor installations under laminate, wood and selected build-ups |
| Floor type focus | Laminate and engineered wood | Wood, laminate, carpet and selected vinyl build-ups |
| Build style | Very slim dry installation | Slim dry installation |
| Buyer question | I want a broad, low-profile heating layer under a floating floor. | I want a dry underfloor heating system for a floating floor build-up. |
How Thick Is Electric Underfloor Heating?
There is no single electric underfloor heating thickness because the total build-up depends on the system type and the full floor structure. The heating element is only one part of the finished height.
| System | Typical Thickness Point | Buyer Note |
|---|---|---|
| StickyMat and EcoFloor | Low profile, but final build-up depends on adhesive and floor finish | Good where buyers want a relatively thin tiled heating route |
| Loose Wire | Low cable profile, but final height depends on adhesive or levelling layer | Flexibility matters more than a neat headline thickness number |
| Foil | Usually very slim in dry floating floor builds | The whole build-up still matters, including underlay and protective layers |
| Carbon Film | Very slim | Popular where build-up needs to stay low |
| Decoupling Membrane | Thicker than a simple mat because the membrane is part of the system | Chosen for tile performance, not just minimal height |
| In-Screed | Thicker overall build-up | Usually for projects with screed depth available anyway |
Typical Electric Underfloor Heating Layers
Buyers often ask about underfloor heating layers, electric underfloor insulation and electric underfloor heating insulation. The exact build-up depends on the product, subfloor and floor finish, but these are common routes.
Tiled floor build-up
Subfloor → suitable insulation if required → StickyMat, EcoFloor, loose wire or decoupling system → adhesive or levelling layer as required → tile finish.
Floating floor build-up
Subfloor → suitable insulated layer or underlay route → foil or carbon film system → protective layers where required → laminate or engineered wood finish.
New-build screed route
Structural base → insulation layer → in-screed electric cable → screed → final floor finish.
The heating system is only one part of the result. Insulation, adhesive, levelling layer, overlay choice, thermostat and floor finish all affect comfort, responsiveness and total build-up height.
Electric Underfloor Heating Controls Explained
Good controls influence comfort, efficiency and floor protection. Even the right heating system can perform badly if it is paired with poor control logic or the wrong sensor setup.
- Basic programmable thermostats suit buyers who want simple timed heating.
- WiFi thermostats suit buyers who want app control, smarter scheduling and more day-to-day flexibility.
- Floor sensor control is especially important where the floor finish needs temperature protection.
- Zoning matters in larger homes and when rooms are used very differently from one another.
Main Electric Underfloor Heating Guides
Because this page is a blog, it should point strongly toward your better authority guide pages. These guide cards help buyers keep researching without bouncing back to the menu.
Authority Guide
Best Electric Underfloor Heating Systems
The strongest starting point for choosing systems by room type, floor finish and project style.
Overview
Electric UFH Guide: Systems, Costs & Options
A broader guide to build-up choices, benefits and real-world system differences.
Installation
Electric UFH Installation Guide
Helps buyers understand floor build-up, accessories, installation planning and system choice.
Tiled Rooms
StickyMat & EcoFloor Heating Mats
Compare undertile heating mats for bathrooms, kitchens and regular-shaped tiled rooms.
Flexible Layouts
Loose Wire Underfloor Heating
Best for irregular spaces, detailed layouts and tiled floors that need more flexibility.
Floating Floors
Foil Heating Systems
Dry electric floor heating for laminate, wood and selected floating floor builds.
Electric Underfloor Heating Pros and Cons
| Pros | Cons |
|---|---|
| Low-profile systems available for many floor builds Strong choice range for different rooms and floor finishes Cleaner room aesthetics with less reliance on wall radiators Good zoning and smart-control potential Useful for single-room projects and retrofits |
The wrong system choice can hurt performance Floor build-up layers still need careful planning Running costs depend on insulation and control strategy Some systems suit only specific floor finishes Buyers need to size from true usable heated area, not full room size |
FAQ’s
What are the main types of electric underfloor heating?
The main types are StickyMat and EcoFloor heating mats, loose wire, foil systems, carbon film heating, decoupling membrane systems and in-screed electric heating.
What is the best electric underfloor heating system?
There is no single best system for every project. Tiled bathrooms often suit heating mats or loose wire, while floating floors often suit foil or carbon film. The best route depends on the floor finish, room shape and build-up.
What is the difference between StickyMat and loose wire?
StickyMat systems are usually quicker to install in regular-shaped rooms because the cable is pre-spaced on a mesh. Loose wire is usually better for awkward-shaped rooms where more layout flexibility is needed.
What is the best electric underfloor heating for laminate floors?
Foil and carbon film systems are often the most relevant electric underfloor heating types for laminate and other floating floor projects.
How thick is electric underfloor heating?
It varies by system. Some electric UFH systems are very slim, but total build-up depends on the heating element plus insulation, adhesive, levelling layers, membranes, overlays and the final floor finish.
What are underfloor heating layers?
The layers usually include the subfloor, suitable insulation or build-up layer, the heating system itself, any required adhesive or levelling layer, and the final floor finish.
Ready to Choose the Right Electric Underfloor Heating?
The best electric underfloor heating system is the one that matches the floor finish and room layout properly. Start by choosing the room type, then match the heating route: StickyMat and EcoFloor for many tiled rooms, loose wire for irregular layouts, foil or carbon film for floating floors, and decoupling or in-screed systems where the build-up calls for them.
Start with the Best Electric Underfloor Heating Systems Guide or ask for expert advice if you are matching UFH to a specific floor finish.
