How to Install Carbon Film Underfloor Heating — Step-by-Step Guide
Carbon Film Underfloor Heating Installation Guide UK – How to Install Carbon Heating Film Under Floating Floors
A detailed buyer and installer guide for carbon heating film, carbon film underfloor heating, underfloor heating film and electric underfloor heating film systems used beneath laminate, engineered wood and other floating floors.
Carbon heating film is a slim electric radiant floor heating system designed mainly for dry rooms and floating floors. It is sometimes called carbon film underfloor heating, carbon underfloor heating, underfloor heating film, infrared underfloor heating film or simply film heating. In most cases, buyers searching those terms are looking for the same thing: a low-build electric floor heating system that can sit beneath laminate or engineered timber floors without the wet installation methods used for tiled systems.
If you are planning a bedroom renovation, a living room upgrade, a home office floor build or a larger open-plan dry space, carbon film can be a very attractive option. It spreads warmth evenly, avoids bulky radiators, and works especially well where you want the floor itself to feel comfortable underfoot. It is also popular with people who want a neat electric heating solution without screed or thick adhesive build-up.
Your Search Console data already shows impressions for phrases such as carbon heating film, carbon film underfloor heating, carbon underfloor heating, carbon floor heating, carbon film heating, film heating, underfloor heating film, electric underfloor heating film, infrared underfloor heating and carbon heating film under laminate floor. That tells us Google is already testing this page for useful buyer searches. The smartest move now is not to waffle harder, but to make the page genuinely better at answering those exact questions.
Quick Links
- Popular EcoFilm products
- What is carbon heating film?
- How carbon film works
- Why buyers choose carbon film
- Best floors for film heating
- Carbon film under laminate
- Carbon film under engineered wood
- Best rooms for underfloor heating film
- Plan and measure the room
- Prepare the subfloor
- Lay the underfloor heating film
- Electrical connections
- Floor sensor and thermostat
- Test before covering
- Install the final flooring
- Carbon film vs other systems
- Quick room sizing guide
- Running cost calculator
- Real room running cost examples
- Troubleshooting cold spots
- Mistakes professionals avoid
- Commercial uses
- International search phrases
- FAQ’s
Electric Underfloor Heating Guide
Best Electric UFH Systems Buyer Guide
Electric Underfloor Heating Installation Guide
Underfloor Heating Insulation Guide
Underfloor Heating Thermostats Guide
Underfloor Heating Compatibility Guide
Popular Carbon Film Underfloor Heating Products
If you are searching for carbon heating film floor systems, carbon underfloor heating film, film heating floor or a ready-to-buy underfloor heating film kit, these are some of the most relevant starting points.
A complete carbon film heating kit designed for laminate and engineered wood floors in dry rooms.
A flexible carbon film solution suitable for floating floors in bedrooms, lounges and other dry living areas.
A key part of many EcoFilm floating floor build-ups, helping protect the heating layer beneath the finished floor.

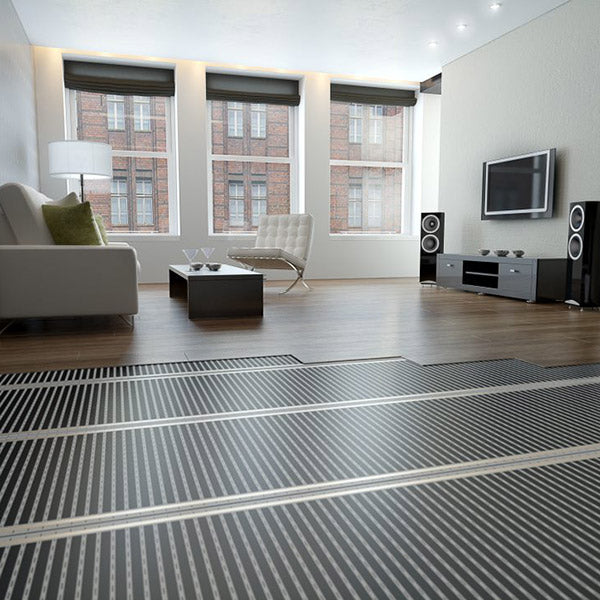

What Is Carbon Heating Film?
Carbon heating film is a thin electric radiant heating layer made with carbon-based heating elements. Once connected to power and controlled through a thermostat, the carbon layer warms the floor above and creates even, comfortable heat across the room. Buyers may search for carbon floor heating, heating film floor, infrared floor heating film, carbon infrared underfloor heating film or electric underfloor heating carbon film, but they are usually describing the same style of system.
The big appeal is its slim dry build-up. Unlike tiled systems that sit in adhesive or self-levelling compound, carbon film is generally used under floating floors. That makes it attractive for room refurbishments where keeping floor height low matters. It is neat, lightweight, fast to lay once planned properly, and especially popular in spaces where the floor finish will be laminate or engineered wood.
Carbon heating film, carbon film underfloor heating, carbon underfloor heating film and underfloor heating film are often just different search phrases for the same type of dry electric floor heating system.
How Carbon Film Underfloor Heating Works
Carbon film heating uses thin carbon elements embedded within a flexible film. When electricity flows through the carbon layer, it generates radiant heat which warms the floor surface above. Because it is a dry installation underfloor heating system, it is especially attractive for floating floors where build-up needs to stay low.
People often search for infrared underfloor heating because the warmth feels gentle and direct compared with older systems. That wording is not wrong, but the real buying decision usually depends on floor finish, insulation, heat loss and controls. Put bluntly: the search term might be sexy, but the build-up is what pays the bills.
Why Buyers Choose Carbon Film Underfloor Heating
Carbon film underfloor heating is popular because it solves several buyer problems at once. It can free up wall space, reduce reliance on visible radiators, and provide a more even feeling of warmth under floating floors. It is especially attractive in modern refurbishments where homeowners want cleaner lines and installers want a dry, tidy system.
- Low build-up: helpful when floor height is limited.
- Dry installation: no screed or tile adhesive needed for the heating itself.
- Good match for laminate and engineered wood: especially in dry rooms.
- Even floor warmth: attractive for bedrooms, lounges and home offices.
- Flexible zoning: easy to pair with thermostats for room-by-room control.
- Modern finish: no radiator clutter and more freedom with furniture placement around the perimeter.
What Floors Is Carbon Film Best For?
Carbon film underfloor heating is most commonly used beneath laminate and engineered wood floors, especially in dry rooms. It is popular where buyers want a slim electric heating system under a floating floor without having to use tile adhesive or self-levelling compound.
This is why search terms like carbon heating film under floating floor, carbon heating film under laminate floor and under timber floor heating are so useful. They show the buyer is already thinking about the floor finish, which is exactly where the right system choice begins.
| Floor Finish | Is Carbon Film Suitable? | Buyer Notes |
|---|---|---|
| Laminate | Yes | One of the most common and natural pairings for carbon film heating. |
| Engineered Wood | Yes | Usually a strong option when floor temperature limits are respected. |
| Timber Floating Floors | Yes | Useful for buyers searching for under timber floor heating or radiant heating under floating floors. |
| Vinyl / LVT | Sometimes | Usually requires an extra protective build-up such as overlay boards and careful thermostat control. |
| Carpet | Sometimes | Only where the correct overlay system and floor specification are used. |
| Bathrooms / Wet Rooms | No, not usually | Carbon film is normally for dry rooms. Tiled systems are usually better for bathrooms. |
For flooring ideas, see our Trendtime 6 Laminate Guide and Trendtime 6 Vinyl Guide.
Carbon Film Under Laminate Floor
Carbon heating film under laminate floor is one of the strongest use cases for this type of system. Laminate floors are often installed as floating floors, which fits well with the dry nature of carbon film. When the subfloor is clean, suitable insulation is used, and the thermostat includes floor sensing, laminate and carbon film can make an excellent pairing.
Buyers like this combination because it keeps the installation slim and avoids the disruption of thicker build-ups. It also makes sense in bedrooms, living rooms and home offices where a warmer floor and simpler room aesthetics are both appealing.
- Check the laminate manufacturer’s maximum floor temperature guidance.
- Use a floor sensor thermostat, not just air sensing.
- Keep heating out of blocked zones and fixed furniture areas.
- Use proper insulation and vapour protection where the build-up requires it.
Carbon Film Under Engineered Wood
Engineered wood is another common choice for carbon film underfloor heating. It gives a warmer, more natural floor finish while still working well in floating floor builds. Many buyers prefer engineered wood over solid timber for heated floors because it is generally more dimensionally stable. That said, the floor manufacturer’s guidance still matters, especially around temperature limits and approved underlays.
For engineered wood builds, control is everything. A good thermostat with floor sensing helps protect the finish and prevents overheating. This is one of those jobs where being cheap with the control can become expensive with the floor.
Best Rooms for Underfloor Heating Film
Underfloor heating film is especially useful in dry rooms where comfort underfoot matters and a floating floor is planned. It is not the answer to every project, but in the right rooms it can be a very smart solution.
| Room Type | Why Carbon Film Works Well | Key Planning Note |
|---|---|---|
| Bedroom | Comfortable warm floor and quiet operation | Use floor sensing and sensible overnight schedules |
| Living Room | Even warmth and more freedom from radiators | Measure around sofas, media units and blocked zones |
| Home Office | Comfortable occupied zone heating for daily use | Good insulation improves responsiveness |
| Loft Room | Useful where radiators are awkward or wall space is limited | Heat-loss planning is important |
| Open Dry Space | Clean finish and large-area floating floor coverage | Circuit planning and zoning matter more |
For bathrooms and wet rooms, other electric underfloor heating systems are usually more suitable. Carbon film is not trying to be all things to all floors. That is how product pages end up sounding like politicians.
1. Plan and Measure the Heating Area
- Only heat usable floor space. Avoid areas beneath fixed furniture, kitchen units and wardrobes.
- Leave expansion gaps. Maintain roughly a 5–10cm perimeter gap from walls.
- Measure the net heated area carefully. This is the area the heating will actually cover, not the full room size.
- Check power supply capacity. Confirm the circuit rating before installation and involve a qualified electrician if unsure.
2. Prepare the Subfloor Properly
- Subfloor must be clean, dry and level.
- Remove sharp debris and irregularities that could create pressure points.
- Install suitable underfloor heating insulation to reduce downward heat loss.
- On concrete floors use a vapour barrier where required by the build-up.
Without insulation, heat can escape downward into the subfloor rather than heating the room efficiently. That means slower warm-up, poorer performance and higher running costs.
Insulation boards improve heating efficiency, reduce heat loss and usually make carbon film systems feel more responsive.
Learn which insulation types make sense for concrete, timber and floating floor build-ups.
Useful if you are comparing insulation, underlay and acoustic layers as part of the final floor build-up.
3. Lay the Carbon Film Heating
- Cut film only along marked cut lines.
- Lay strips copper side down.
- Never overlap heating film.
- Maintain spacing between strips where required by the system instructions.
- Keep the layout tidy and consistent so later wiring and sensor placement are straightforward.
This section matters for searchers using broader phrases like heating film, film heating or underfloor heating film installation, because many of those users are not just comparing products. They are actively trying to understand whether the job looks realistic for their project.
4. Connect the Electrical Components
- Attach connection clips to the copper busbars.
- Seal all connections using the correct insulation tape.
- Route wiring neatly to the thermostat location.
- Do not leave exposed conductive parts untaped or poorly protected.
For compatible controls and accessories, browse our Thermostats & Controls Collection.
5. Install a Floor Sensor and Thermostat
A thermostat with a floor sensor is one of the most important parts of a carbon film installation. It helps control comfort, protects the floor finish and manages energy use much more effectively than simple on/off control.
- Place the sensor midway between heating strips.
- Follow the manufacturer’s wiring diagram precisely.
- Use a qualified electrician where required.
- Check the floor finish temperature limit and set the thermostat accordingly.
A smart option for simple scheduling and straightforward day-to-day control of electric floor heating.
A premium thermostat for buyers who want stronger scheduling, app control and better day-to-day energy management.
A useful WiFi control option for electric underfloor heating with floor sensing and programmable control.
For a fuller control comparison, read our Underfloor Heating Thermostats Guide.
6. Test the System Before Covering
A qualified electrician is strongly recommended for this stage.
- Check resistance and continuity.
- Power briefly to confirm even heating.
- Inspect all taped connections.
- Confirm thermostat and floor sensor operation.
Testing now prevents expensive flooring removal later.
7. Install the Final Flooring
- Install laminate or engineered wood in line with the flooring manufacturer’s guidance.
- Avoid nails or screws into heated zones.
- Respect maximum floor temperature limits.
- If fitting vinyl, LVT or carpet, check whether an overlay system is required.
A useful option when a protective overlay build-up is needed above dry underfloor heating systems.
Read this if you are fitting vinyl, LVT or carpet over a dry electric underfloor heating system.
Carbon Film vs Other Electric Underfloor Heating Systems
| System | Best For | Typical Floors | Installation |
|---|---|---|---|
| Carbon Film | Large dry rooms | Laminate, engineered wood, floating timber floors | Floating floor / dry installation |
| Foil Heating | Floating floors | Laminate, engineered wood, some vinyl/carpet builds | Dry installation |
| Heating Mats | Bathrooms & kitchens | Tile, stone | Embedded in adhesive |
| Loose Wire | Irregular tiled layouts | Tile | Flexible cable spacing |
| DCM-PRO | Tile protection + heating | Tile, stone | Decoupling membrane + cable |
For floating floors, carbon film and foil heating are often the most relevant comparisons. For tiled floors, heating mats, loose wire and DCM-PRO are usually more suitable. Many users comparing carbon film heating with other systems are not really choosing between technologies first; they are choosing between floor finishes, build-up depth and how dry or wet the installation will be.
Quick Room Sizing Guide
| Room Type | Typical Starting Point | Important Note |
|---|---|---|
| Bedroom | Lower to medium output depending on insulation | Good thermostat control is important for comfort overnight |
| Living room | Medium output with careful free-floor planning | Large rugs and furniture placement affect usable heated area |
| Home office | Medium output in a focused occupied zone | Often performs very well with good insulation beneath |
| Large open dry room | Higher total wattage due to floor area | Check circuit capacity early in the planning stage |
Always size from the true usable heated floor area, not the gross room dimensions.
Carbon Film Running Cost Calculator
Use this calculator to estimate a simple maximum running cost for your carbon film underfloor heating setup. It is a planning tool designed to help compare room sizes, wattages and electricity rates before you buy.
Planning note: this calculator estimates maximum electrical use for the hours selected. Real-world running costs are often lower because thermostats cycle the heating on and off once the floor and room are up to temperature.
Carbon Film Running Cost Examples UK
Search Console impressions for carbon film terms often mean buyers are moving beyond “what is it?” and into “what will it cost me?”. The honest answer is that running costs depend on the heated area, watt density, electricity rate, insulation quality, thermostat control and how often the room is occupied. Still, simple room examples are useful for planning.
| Room Example | Heated Area | Typical Output | Planning Thought |
|---|---|---|---|
| Small Bedroom | 8m² | 800W at 100W/m² | Often a manageable setup with good insulation and sensible scheduling. |
| Home Office | 10m² | 1000W at 100W/m² | Can work well for daily occupied comfort when zoned separately. |
| Living Room | 15m² usable heated area | 1500W at 100W/m² | Furniture planning and insulation make a noticeable difference. |
| Large Open Dry Space | 24m² | 2400W at 100W/m² | Circuit planning, zoning and thermostat strategy matter much more. |
In real-world use, carbon film underfloor heating usually cycles on and off rather than drawing maximum power continuously all day. That is why buyers should treat headline figures as planning estimates rather than guaranteed monthly bills.
For deeper examples, see our Carbon Film Running Costs Guide.
Troubleshooting Carbon Film Cold Spots and Performance Problems
If a buyer searches “carbon film not heating evenly” or complains that one zone feels colder than another, the cause is often not the film itself but the installation details around it. Carbon heating film is fairly straightforward, but floor systems are ruthless about small mistakes.
- Cold area beneath furniture: the zone may be intentionally unheated or heat may be trapped by blocked airflow.
- Uneven warmth: check strip layout, spacing and whether some areas were left uncovered during planning.
- Slow warm-up: poor insulation beneath the system is a common culprit.
- Floor not reaching expected temperature: thermostat limits may be set conservatively to protect the floor finish.
- One strip not working: connection, tape sealing or testing issues may need checking by a qualified electrician.
- Room still feels cool: the room heat loss may be higher than the system design expected.
Installation Mistakes Professionals Try to Avoid
Even good installers know that underfloor heating problems usually begin before the heating is switched on. The most common mistakes are not dramatic. They are small, boring and expensive, which is very rude of them.
- Ordering for the full room area instead of the true usable heated area.
- Skipping insulation or using an inefficient build-up.
- Choosing carbon film for a floor finish that needs a different system.
- Ignoring the floor manufacturer’s maximum temperature guidance.
- Poor floor sensor placement.
- Untidy connection work or poor sealing of connection points.
- Failing to test before the final floor goes down.
- Running heating below large fixed furniture or permanently blocked areas.
- Using a thermostat strategy that is too basic for the room pattern.
Commercial Uses of Carbon Film Heating
Carbon film underfloor heating is most often associated with homes, but it can also suit selected commercial spaces where the floor build-up and room use are appropriate. Examples can include offices, consultation rooms, studios, showrooms, treatment rooms and other dry interior spaces with floating floors.
The main question is not whether a room is technically “commercial”. It is whether the floor finish, heat-loss level, usable floor area and daily usage pattern make carbon film sensible. In a lightly occupied office or studio with a floating floor, it can be a neat low-profile solution. In a high-traffic wet space, it is usually the wrong horse for the course.
- Confirm the room is dry and suitable for a floating floor system.
- Assess occupancy pattern and thermostat schedule needs.
- Check furniture layout and permanent blocked zones.
- Review heat-loss expectations before sizing the system.
- Consider separate zoning where different rooms have different use patterns.
International Search Phrases and What They Usually Mean
Your Search Console data also shows a scattering of non-English phrases and very short intent terms such as “pics” or “show me a picture” style queries. In plain terms, that usually means some searchers are looking for images, examples, or trying to confirm that carbon film heating is the same thing they know by another name in their own language.
That is another reason this page should stay broad, practical and visual. The goal is not to cram in awkward translations everywhere. It is to make the main page strong enough that a buyer arriving from a slightly different phrasing can still recognise the system and quickly understand whether it suits laminate, timber or floating floor projects.
FAQ’s
What is carbon heating film?
Carbon heating film is a thin electric radiant heating layer used beneath floating floors. It is also commonly called carbon film underfloor heating, underfloor heating film or electric underfloor heating film.
Is carbon film underfloor heating efficient?
Yes. Carbon film systems convert electricity into heat very efficiently and warm the floor surface directly. Real-world efficiency depends heavily on insulation, thermostat control and the room itself.
What flooring works with carbon film heating?
Laminate and engineered wood are the most common compatible flooring types. Some vinyl or carpet build-ups may also be possible when the correct protective layers are used.
Can carbon film heating be used under laminate floor?
Yes. Carbon heating film under laminate floor is one of the most common and suitable uses for the system, provided the floor build-up, sensor and temperature limits are all correct.
Can carbon film heating be used under engineered wood?
Yes. Engineered wood is one of the most common floor finishes used over carbon film underfloor heating, as long as the manufacturer’s limits and installation guidance are followed.
Can carbon film heating be used under timber floor?
Yes, in many floating timber and engineered wood builds it can be a strong option. Always check the floor manufacturer's guidance and use correct thermostat limits.
Can carbon film heating be used in bathrooms?
Carbon film systems are normally used in dry rooms rather than wet areas. For bathrooms, tiled heating systems such as heating mats or loose wire are usually more suitable.
Do I need a thermostat?
Yes. A thermostat with a floor sensor helps control temperature, protect the floor finish and manage energy use much more effectively.
Do I need insulation with carbon film heating?
In most cases, yes. Insulation beneath the heating system improves efficiency, reduces heat loss and usually makes the system feel more responsive.
Do I need overlay boards with carbon film?
Not usually for laminate or engineered wood. Overlay boards may be needed where the final floor is vinyl, LVT or carpet, depending on the full build-up.
What is the difference between carbon film and foil underfloor heating?
Both are dry electric underfloor heating systems used beneath floating floors, but foil systems are often chosen where a broader range of floor build-ups is needed, especially when overlay boards are involved. Carbon film is especially popular for slim-profile dry-room floating floors.
Which is cheaper to run: carbon film or foil heating?
Running costs are often similar when the wattage, room size and insulation levels are similar. The main differences usually come from the floor build-up, heat loss and thermostat settings rather than the headline system name.
Can carbon film underfloor heating be the main heat source?
Yes, in some well-insulated rooms it can act as the main heating source. Whether that is realistic depends on room heat loss, floor finish and system design.
Can I put furniture over carbon film underfloor heating?
As a rule, you should only heat the usable floor area and avoid running heating beneath large fixed furniture or items that block heat transfer.
Is carbon film heating the same as infrared underfloor heating?
Many buyers use those phrases in a similar way because carbon film produces radiant warmth. In real projects, the more important question is whether the floor build-up and room type suit a carbon film system.
What rooms are best for underfloor heating film?
Bedrooms, living rooms, home offices, loft rooms and other dry spaces with laminate or engineered wood floors are often strong candidates.
Ready to Buy?
If your project is a dry-room floating floor installation, carbon film underfloor heating can be an excellent low-build choice. Start with the right EcoFilm kit, add suitable insulation and vapour barrier, and choose a thermostat with floor sensing so the whole system works properly from day one.
Quick Quote
Fill out the form below and we'll get back to you as soon as we can.
