How to Install Carbon Film Underfloor Heating (Step-by-Step Guide for EcoFilm Systems)
A practical buyer and installer guide covering planning, floor compatibility, insulation, thermostat setup, running costs, common mistakes and the key products needed for carbon film underfloor heating.
Carbon film underfloor heating is one of the most popular electric heating systems used beneath floating floors such as laminate and engineered wood. It provides a slim, efficient heating solution that spreads warmth evenly across the floor surface without wet adhesive or screed build-ups.
If you are upgrading a single room or planning a wider renovation, correct layout, careful preparation and safe electrical connections are the keys to reliable long-term performance. This guide explains the installation process clearly while also helping buyers understand which accessories, controls and floor build-ups are usually needed.
Quick Links
Electric Underfloor Heating Guide
Best Electric UFH Systems Buyer Guide
Electric Underfloor Heating Installation Guide
Underfloor Heating Insulation Guide
Underfloor Heating Thermostats Guide
Underfloor Heating Compatibility Guide
Popular Carbon Film Underfloor Heating Products

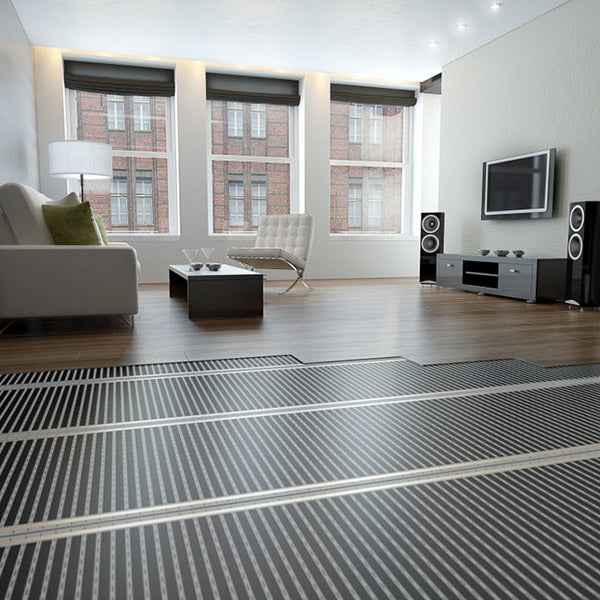

A complete carbon film heating kit designed for laminate and engineered wood floors in dry rooms.
A flexible carbon film solution suitable for floating floors in bedrooms, lounges and other dry living areas.
A key part of many EcoFilm floating floor build-ups, helping protect the heating layer beneath the finished floor.
How Carbon Film Underfloor Heating Works
Carbon film heating uses thin carbon elements embedded within a flexible film. When electricity flows through the carbon layer, it generates radiant heat which warms the floor surface above. Because it is a dry installation underfloor heating system, it is especially attractive for floating floors where build-up needs to stay low.
If you want a fuller comparison with other systems, our Foil Underfloor Heating Guide is especially useful because carbon film and foil systems are often compared for floating floor projects.
What Floors Is Carbon Film Best For?
Carbon film underfloor heating is most commonly used beneath laminate and engineered wood floors, especially in dry rooms. It is popular where buyers want a slim electric heating system under a floating floor without having to use tile adhesive or self-levelling compound.
| Floor Finish | Is Carbon Film Suitable? | Buyer Notes |
|---|---|---|
| Laminate | Yes | One of the most common and natural pairings for carbon film heating. |
| Engineered Wood | Yes | Usually a strong option when floor temperature limits are respected. |
| Vinyl / LVT | Sometimes | Usually requires an extra protective build-up such as overlay boards and careful thermostat control. |
| Carpet | Sometimes | Only where the correct overlay system and floor specification are used. |
| Bathrooms / Wet Rooms | No, not usually | Carbon film is normally for dry rooms. Tiled systems are usually better for bathrooms. |
For flooring ideas, see our Trendtime 6 Laminate Guide and Trendtime 6 Vinyl Guide.
1. Plan and Measure the Heating Area
- Only heat usable floor space. Avoid areas beneath fixed furniture, kitchen units and wardrobes.
- Leave expansion gaps. Maintain roughly a 5–10cm perimeter gap from walls.
- Measure the net heated area carefully. This is the area the heating will actually cover, not the full room size.
- Check power supply capacity. Confirm the circuit rating before installation and involve a qualified electrician if unsure.
2. Prepare the Subfloor Properly
- Subfloor must be clean, dry and level.
- Remove sharp debris and irregularities that could create pressure points.
- Install suitable underfloor heating insulation to reduce downward heat loss.
- On concrete floors use a vapour barrier where required by the build-up.
Without insulation, heat can escape downward into the subfloor rather than heating the room efficiently. That means slower warm-up, poorer performance and higher running costs.
Insulation boards improve heating efficiency, reduce heat loss and usually make carbon film systems feel more responsive.
Learn which insulation types make sense for concrete, timber and floating floor build-ups.
Useful if you are comparing insulation, underlay and acoustic layers as part of the final floor build-up.
3. Lay the Carbon Film Heating
- Cut film only along marked cut lines.
- Lay strips copper side down.
- Never overlap heating film.
- Maintain spacing between strips where required by the system instructions.
- Keep the layout tidy and consistent so later wiring and sensor placement are straightforward.
4. Connect the Electrical Components
- Attach connection clips to the copper busbars.
- Seal all connections using the correct insulation tape.
- Route wiring neatly to the thermostat location.
- Do not leave exposed conductive parts untaped or poorly protected.
For compatible controls and accessories, browse our Thermostats & Controls Collection.
5. Install a Floor Sensor and Thermostat
A thermostat with a floor sensor is one of the most important parts of a carbon film installation. It helps control comfort, protects the floor finish and manages energy use much more effectively than simple on/off control.
- Place the sensor midway between heating strips.
- Follow the manufacturer’s wiring diagram precisely.
- Use a qualified electrician where required.
- Check the floor finish temperature limit and set the thermostat accordingly.
A smart option for simple scheduling and straightforward day-to-day control of electric floor heating.
A premium thermostat for buyers who want stronger scheduling, app control and better day-to-day energy management.
A useful WiFi control option for electric underfloor heating with floor sensing and programmable control.
For a fuller control comparison, read our Underfloor Heating Thermostats Guide.
6. Test the System Before Covering
A qualified electrician is strongly recommended for this stage.
- Check resistance and continuity.
- Power briefly to confirm even heating.
- Inspect all taped connections.
- Confirm thermostat and floor sensor operation.
Testing now prevents expensive flooring removal later.
7. Install the Final Flooring
- Install laminate or engineered wood in line with the flooring manufacturer’s guidance.
- Avoid nails or screws into heated zones.
- Respect maximum floor temperature limits.
- If fitting vinyl, LVT or carpet, check whether an overlay system is required.
A useful option when a protective overlay build-up is needed above dry underfloor heating systems.
Read this if you are fitting vinyl, LVT or carpet over a dry electric underfloor heating system.
Carbon Film vs Other Electric Underfloor Heating Systems
| System | Best For | Typical Floors | Installation |
|---|---|---|---|
| Carbon Film | Large dry rooms | Laminate, engineered wood | Floating floor / dry installation |
| Foil Heating | Floating floors | Laminate, engineered wood, some vinyl/carpet builds | Dry installation |
| Heating Mats | Bathrooms & kitchens | Tile, stone | Embedded in adhesive |
| Loose Wire | Irregular tiled layouts | Tile | Flexible cable spacing |
| DCM-PRO | Tile protection + heating | Tile, stone | Decoupling membrane + cable |
For floating floors, carbon film and foil heating are often the most relevant comparisons. For tiled floors, heating mats, loose wire and DCM-PRO are usually more suitable. If you are not sure whether your project is really a carbon film job, that is often the first question worth getting right.
Quick Room Sizing Guide
| Room Type | Typical Starting Point | Important Note |
|---|---|---|
| Bedroom | Lower to medium output depending on insulation | Good thermostat control is important for comfort overnight |
| Living room | Medium output with careful free-floor planning | Large rugs and furniture placement affect usable heated area |
| Home office | Medium output in a focused occupied zone | Often performs very well with good insulation beneath |
| Large open dry room | Higher total wattage due to floor area | Check circuit capacity early in the planning stage |
Always size from the true usable heated floor area, not the gross room dimensions.
Carbon Film Running Cost Calculator
Use this calculator to estimate a simple maximum running cost for your carbon film underfloor heating setup. It is a planning tool designed to help compare room sizes, wattages and electricity rates before you buy.
Planning note: this calculator estimates maximum electrical use for the hours selected. Real-world running costs are often lower because thermostats cycle the heating on and off once the floor and room are up to temperature.
For deeper examples, see our Carbon Film Running Costs Guide.
Common Carbon Film Installation Mistakes to Avoid
- Ordering for the full room area instead of the true free-floor heated area.
- Skipping insulation below the system.
- Using the wrong build-up for vinyl, LVT or carpet finishes.
- Poor floor sensor placement.
- Not checking floor temperature limits for laminate or engineered wood.
- Failing to test the system before fitting the final floor.
- Running heating beneath large fixed furniture or blocked zones.
If you want carbon film underfloor heating to feel quick and economical, the two biggest improvements are usually good insulation below and a smart thermostat with floor sensing.
Final Safety Checklist
✅ All electrical connections secured
✅ System resistance tested
✅ Thermostat and sensor installed and checked
✅ Floor manufacturer temperature limits followed
✅ Qualified electrician sign-off where required
FAQs – Carbon Film Underfloor Heating
Is carbon film underfloor heating efficient?
Yes. Carbon film systems convert electricity into heat very efficiently and warm the floor surface directly. Real-world efficiency depends heavily on insulation, thermostat control and the room itself.
What flooring works with carbon film heating?
Laminate and engineered wood are the most common compatible flooring types. Some vinyl or carpet build-ups may also be possible when the correct protective layers are used.
Can carbon film heating be used in bathrooms?
Carbon film systems are normally used in dry rooms rather than wet areas. For bathrooms, tiled heating systems such as heating mats or loose wire are usually more suitable.
Do I need a thermostat?
Yes. A thermostat with a floor sensor helps control temperature, protect the floor finish and manage energy use much more effectively.
Do I need insulation with carbon film heating?
In most cases, yes. Insulation beneath the heating system improves efficiency, reduces heat loss and usually makes the system feel more responsive.
Do I need overlay boards with carbon film?
Not usually for laminate or engineered wood. Overlay boards may be needed where the final floor is vinyl, LVT or carpet, depending on the full build-up.
What is the difference between carbon film and foil underfloor heating?
Both are dry electric underfloor heating systems used beneath floating floors, but foil systems are often chosen where a broader range of floor build-ups is needed, especially when overlay boards are involved. Carbon film is especially popular for slim-profile dry-room floating floors.
Which is cheaper to run: carbon film or foil heating?
Running costs are often similar when the wattage, room size and insulation levels are similar. The main differences usually come from the floor build-up, heat loss and thermostat settings rather than the headline system name.
Can carbon film underfloor heating be the main heat source?
Yes, in some well-insulated rooms it can act as the main heating source. Whether that is realistic depends on room heat loss, floor finish and system design.
Can I put furniture over carbon film underfloor heating?
As a rule, you should only heat the usable floor area and avoid running heating beneath large fixed furniture or items that block heat transfer.
