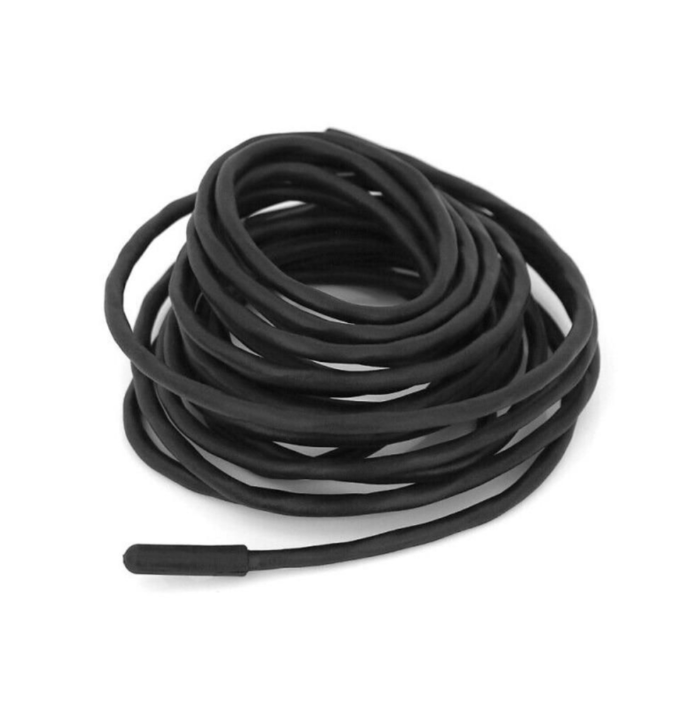

Warmup Floor Probe Conduit and Brass Cap

£18.99 GBP

~~£20.83 GBP~~ £18.99 GBP

Sale Sold out

The Warmup Floor Probe Conduit and Brass Cap is a must-have accessory for any underfloor heating installation. It provides a protective housing for your floor sensor, ensuring accurate temperature readings and allowing for easy maintenance or probe replacement without lifting your tiles.

Order before 12pm for fastest delivery

Key Features:

Durable Protection: High-quality conduit prevents the sensor wire from being crushed or damaged by floor adhesive and screed.
Easy Maintenance: Allows for effortless removal and replacement of the floor probe without disturbing the finished floor.
Brass Cap Included: Specifically designed to provide a sealed, thermally conductive tip for accurate temperature sensing.
Universal Compatibility: Works seamlessly with Warmup 6iE, 4iE, 3iE, and Tempo thermostats.
Flexible Installation: The 2-meter length offers ample coverage for routing the probe from the floor to the thermostat wall box.

Shipping calculated at checkout.

MODEL	PRICE
Floor Probe Conduit and Brass Cap 22067	£18.99 GBP

Quantity

Upgrade your heating system’s longevity with the Warmup Floor Probe Conduit and Brass Cap, supplied by Eco Friendly Heating and Flooring.

This purpose-built conduit acts as a dedicated pathway for your floor temperature probe, safeguarding it from damage during the construction process and daily use.

By using this conduit, you create a "future-proof" system. If a sensor ever needs replacing, it can be simply pulled out and a new one threaded through the conduit, saving you from the cost and hassle of removing flooring. The included brass cap ensures the probe is protected from moisture and adhesive while maintaining excellent thermal conductivity for precise thermostat readings.

Why do I need a conduit for my floor probe?
While some newer probes are more resilient, using a conduit is highly recommended as it allows you to replace a faulty sensor in the future without having to rip up your tiles or flooring.

More FAQs below

1.Why do I need a conduit for my floor probe?
While some newer probes are more resilient, using a conduit is highly recommended as it allows you to replace a faulty sensor in the future without having to rip up your tiles or flooring.

2.Where should the conduit and probe be placed?
The probe tip should be positioned centrally between two runs of heating cable, at least 300mm into the heated area. Avoid placing it near hot water pipes or in areas with direct sunlight, as this can cause false temperature readings.

3.Is the brass cap necessary?
Yes, the brass cap protects the sensor from the alkaline nature of tile adhesive and screed while ensuring the sensor remains sensitive to the floor's actual temperature.

4.Can I use this with any thermostat?
This conduit and cap set is designed for Warmup systems but is generally compatible with most standard NTC 10K floor sensors used in underfloor heating.

5.How do I install the conduit?
The conduit is usually installed during the subfloor preparation. A small channel is often cut into the insulation or subfloor to ensure the conduit sits flush with the heating elements.
