Eco Friendly Heating

Underfloor Heating Element Ecofilm Set 1000mm

Underfloor Heating Element Ecofilm Set 1000mm

£69.92 GBP
£69.92 GBP
Sale Sold out

Key Features:

  • Features
  • £69.92 – £251.62
  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm

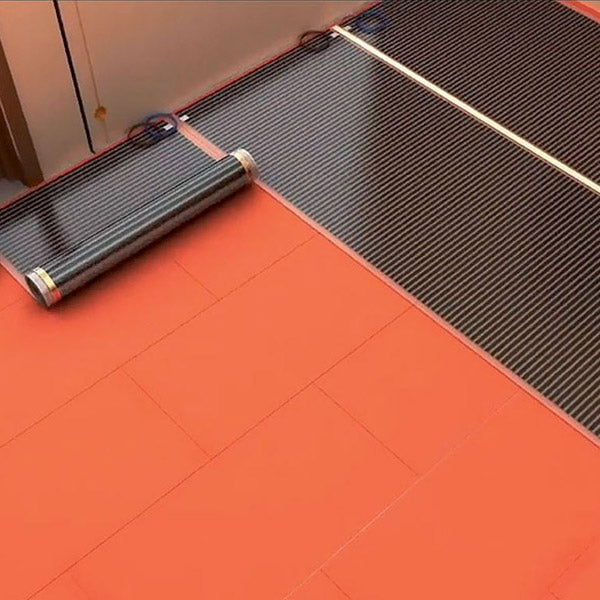

  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use

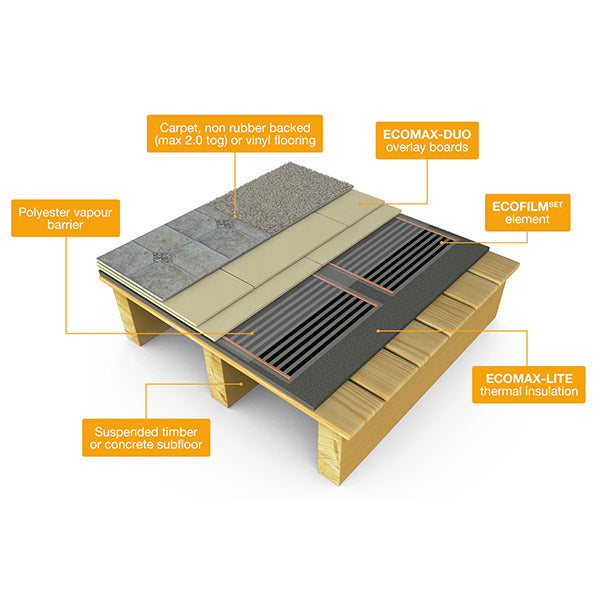

  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO
Taxes included. Shipping calculated at checkout.
PRODUCT CODE / AREA OUTPUT (W) LENGTH (M) PRICE
ES13-1020 252W 2.0M
£69.92 GBP
ES13-1025 315W 2.5M
£81.28 GBP
ES13-1030 378W 3.0M
£92.64 GBP
ES13-1035 441W 3.5M
£103.98 GBP
ES13-1040 504W 4.0M
£115.34 GBP
ES13-1045 567W 4.5M
£126.70 GBP
ES13-1050 631W 5.0M
£138.06 GBP
ES13-1055 694W 5.5M
£149.40 GBP
ES13-1060 757W 6.0M
£160.76 GBP
ES13-1065 820W 6.5M
£172.12 GBP
ES13-1070 883W 7.0M
£183.48 GBP
ES13-1075 946W 7.5M
£194.82 GBP
ES13-1080 1009W 8.0M
£206.18 GBP
ES13-1085 1072W 8.5M
£217.54 GBP
ES13-1090 1135W 9.0M
£228.00 GBP
ES13-595 1198W 9.5M
£240.24 GBP
ES13-10100 1261W 10.0M
£251.62 GBP

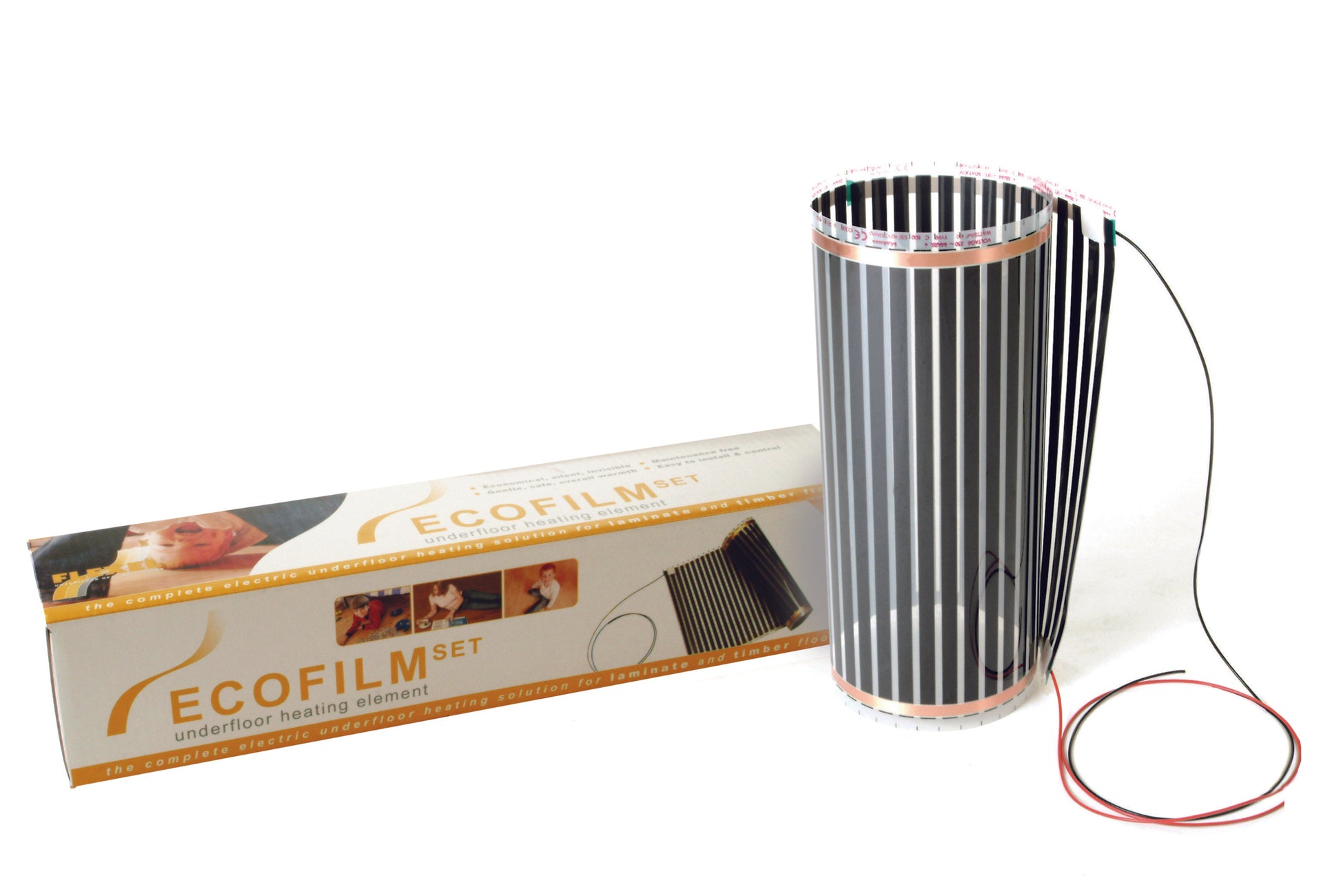

ECOFILMSET Underfloor Heating Elements offer simple and fast installation, with no need for self levelling compound.

The set is available in three different widths with standard lengths up to 10m. The element lengths can be reduced on site if necessary and are supplied as standard with 5m “cold tails”. Available in two standard power dissipations: 130 Watt for internal living areas and 160 Watts for conservatory use.

ECOFILMSET is NOT designed for use in wet areas such as bathrooms or shower rooms.

Features

  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm
  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use
  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO

Technical Specifications:

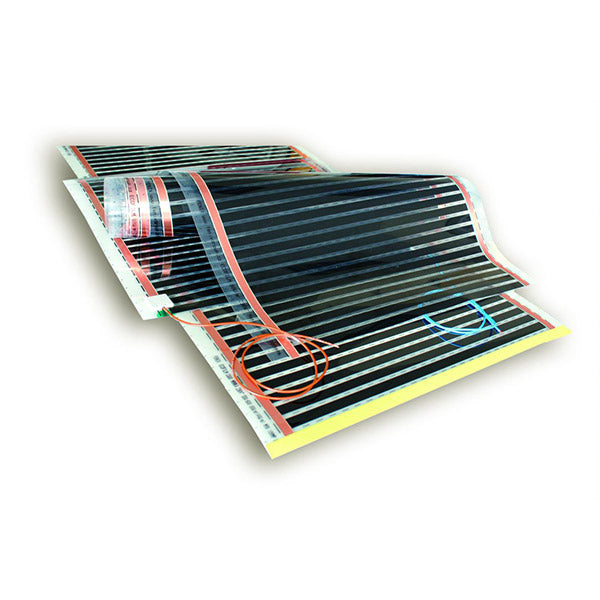

  • Construction: Carbon based flexible heating element
  • Operating voltage: 230, 50Hz
  • Output rating 130W/m2
  • Available in 3 widths: 300mm, 500mm & 1000mm
  • Element Length: 2.0m to 10m in 0.5m increments
  • Cold tail Lengths: 5m
