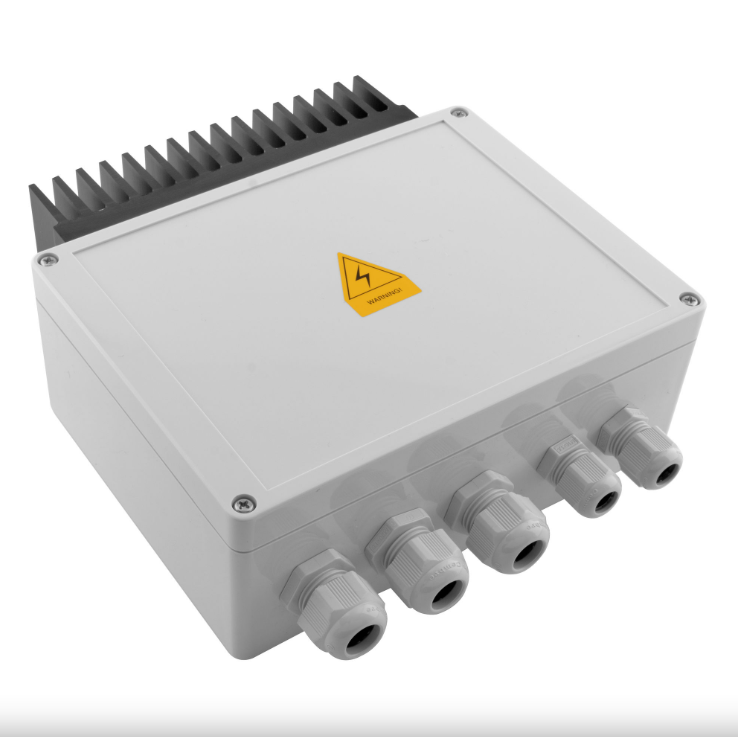

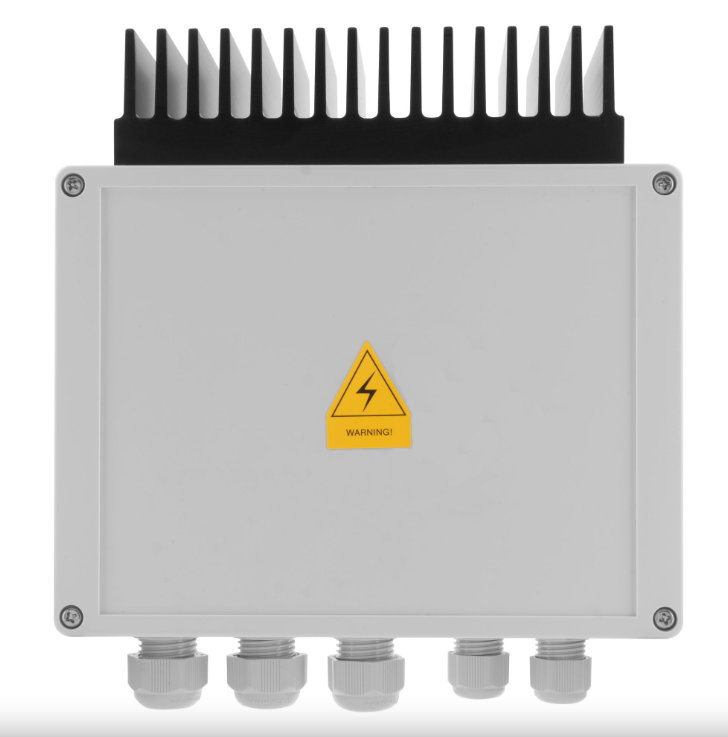

Tansun 6.5kW Wireless Receiver

The Tansun 6.5kW Wireless Receiver is built for projects where standard heating controls simply aren’t powerful enough. Designed to manage high-wattage infrared heaters and resistive loads up to 6500W, this receiver provides reliable, flexible control across a wide range of commercial and large indoor/outdoor spaces.

Whether you are heating a restaurant terrace, warehouse, workshop, or large covered outdoor area, this receiver gives you the ability to fine-tune heat output using Tansun’s proven dimming system.

Flexible Heating Control Where It Matters Most

Unlike basic on/off systems, this receiver allows 4-stage heat adjustment:

• 100% power for rapid heat-up
• 75% for maintained comfort
• 50% for energy-saving background warmth
• OFF when not required

This means you can respond to changing conditions instantly — whether it’s outdoor temperature shifts or varying occupancy levels.

Designed for Commercial and High-Load Installations

With a maximum load of 6.5kW, this unit is ideal for:

• Multiple heater setups on a single control point
• Larger infrared heaters
• Commercial installations where consistent performance matters

It integrates easily into both wired and wireless control systems, giving installers flexibility depending on project requirements.

Smart Features for Efficiency and Longevity

The built-in soft start function reduces sudden power surges, helping to:

• Extend the lifespan of infrared heaters
• Reduce electrical stress on the system
• Improve long-term reliability

It also supports automatic room temperature control and can be paired with:

• Wireless transmitters
• Wired push-button controls
• Movement sensors for automated operation

Simple Setup with Memorised Control Settings

The receiver works with Tansun transmitters using a pre-programmed dimming structure:

• CH1 → 100%
• CH2 → 75%
• CH3 → 50%
• CH4 → OFF

Once paired, all buttons are automatically configured, making installation and setup straightforward even for more complex systems.

⚠️ Important: A compatible Tansun remote handset is required for operation.

Technical Specifications:

• Model: Tansun 6.5kW Wireless Receiver
• Maximum Load: 6500W
• Voltage: 230V AC
• Frequency: 50/60Hz
• Control Type: Wireless / Wired
• Dimming Levels: 100% / 75% / 50% / OFF
• Compatibility: Infrared heaters & resistive loads
• Installation: Wall-mounted
• Control Inputs: Remote handset, push-buttons, sensors
• Soft Start Function: Yes
• Temperature Control Support: Yes

1. What heaters can this receiver control?

This receiver is designed for infrared heaters and other resistive heating systems, making it suitable for both indoor and outdoor heating setups.

2. Can I control multiple heaters with one receiver?

Yes — as long as the combined load does not exceed 6.5kW, you can control multiple heaters from a single receiver.

3. Do I need a remote to use this receiver?

Yes. A Tansun remote handset is required to operate the receiver and access the dimming functions.

4. What does the dimming function actually do?

It allows you to reduce heat output to 75% or 50%, helping you maintain comfort while reducing energy consumption.

5. Can this be used in commercial environments?

Absolutely. This receiver is specifically designed for commercial and high-demand heating installations, including restaurants, warehouses, and outdoor covered areas.

6. What is the benefit of the soft start feature?

Soft start reduces the initial electrical surge when heaters turn on, which helps:

Extend heater lifespan
Improve system reliability
Reduce wear on components
