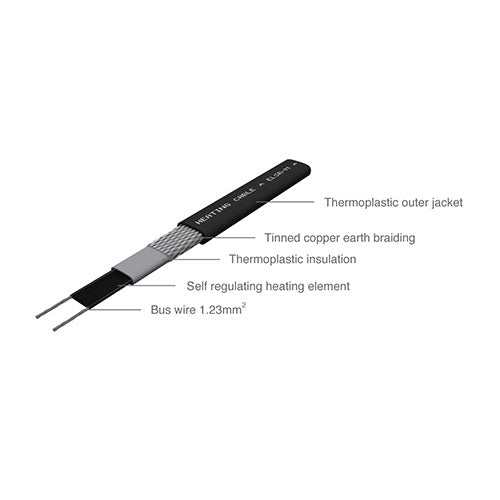

To provide pipe freeze protection the ELSR cables are simply taped along the bottom of the pipe.
| Product Code | Output W/m at 10°C | Max Temp | Min Temp | Max Circuit Length (m) | ||
|---|---|---|---|---|---|---|
| ELSR-M-10-BO | 10 | 65 | -30 | 126 | ||
| ELSR-M-20-BO | 20 | 80 | -10 | 146 |
For plastic pipes we recommend the use of aluminium foil tape to provide better heat dispersion. For maximum protection, trace heated pipes should always be insulated. A connection kit using crimps and heat shrink insulation (kit 4) will be required per circuit. This kit includes components to produce a cold tail connection to the trace cable and seal the end.
Advantages
- Easy termination
- Time saving
- Economical
Features
- Self-regulating
- Two power outputs: 10W/lm and 20W/lm
- Can be cut to length on-site
- Moisture-proof with full-length earth braid
