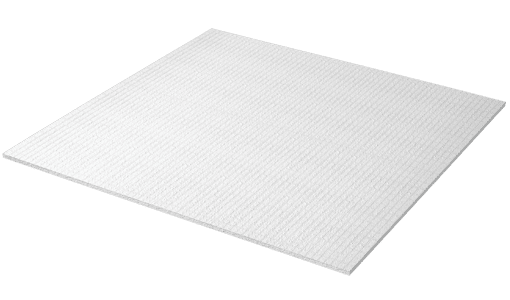

Insulated Underlay for Underfloor Heating

Insulated Underlay for Underfloor Heating

£28.88 GBP (exc VAT)
£33.37 GBP £28.88 GBP (exc VAT)
Sale Sold out
Uncoated Insulation Board for improving underfloor heating efficiency by reducing heat loss to the subfloor. This insulation board is lightweight, easy to cut, moisture-resistant, and provides excellent thermal and sound insulation, making it a cost-effective alternative to coated boards for concrete subfloors.

Order before 12pm for best delivery times

Key Features:

  • Made from eco-conscious materials to support sustainable living
  • Provides effective acoustic insulation to reduce contact and impact noise
  • Enhances thermal performance, improving overall energy efficiency
  • Lightweight and easy to install, perfect for use beneath floating floors
  • Creates a comfortable, quiet foundation for your home
Shipping calculated at checkout.
MODEL PRICE
WIU 2.5 6mm Underlay 120cm Wide 400cm Length -2.5m²
£28.88 GBP
WIU5. 6mm Underlay 120cm Wide 400cm Length - 5m²
£58.88 GBP
WIU10 6mm Underlay 120cm Wide 800cm length - 10m²
£98.87 GBP
WIU25 6mm Underlay 120cm Wide 2000cm length - 25m²
£233.65 GBP

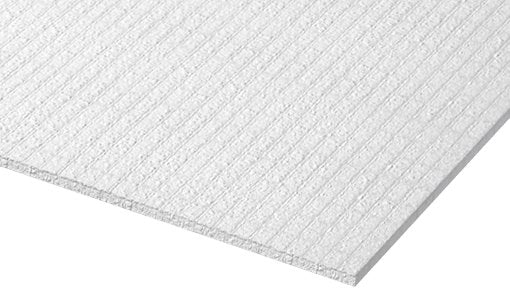

Warmup Insulated Underlay sits between the cold subfloor and the Foil Heater, reflecting heat upwards therefore making the underfloor heating system more efficient and effective. The foil backing acts as an effective moisture barrier. The Insulated Underlay has been specially developed for installation under the Foil Heater and Dual Overlay as part of a complete and stable system. The underlay is a thin polystyrene insulation barrier with effective acoustic properties to reduce contact noise.

The insulated Underlay and Dual Overlay make an ideal combination for installation of soft and resilient floor coverings such as carpet and vinyl over the Warmup Foil Heater.

Available in various sizes from Eco Friendly Heating and Flooring underfloor heating specialists.



Technical Specifications:

  • Roll Size 1200mm(W); 2.5sqm, 5sqm, 10sqm and 25sqm (L)
  • Thickness 6mm
  • Composition Top Layer: Grooved polystyrene
  • Bottom Layer: Silver foil with adhesive overlap
  • R Value 0.17 m²K/W
  • Contact Sound Reduction 25dB ∆Lw when used in conjunction with the Warmup Dual Overlay System
