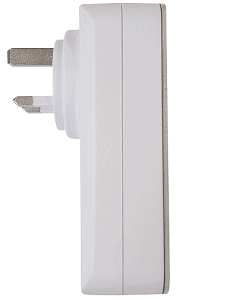

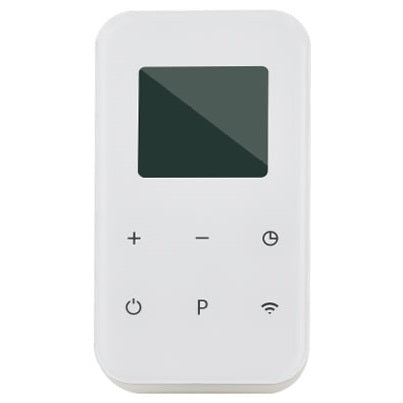

Herschel T-PL is a compact plugin thermostat control designed to work exclusively with Herschel XLS heaters with their built-in SMART-R receiver.
T-PL features manual temperature control together with a 24 hour timer.
T-PL also has Wifi capability to allow you to control your heating remotely via the Smartlife App or by voice control using Alexa or Google Assistant. Adding the Smartlife App also enables a 7 day program with 4 periods per day.
All modes will operate your Herschel heater(s) by turning them ON if the room temperature is lower than the desired temperature and will turn them OFF once the desired temperature is reached or exceeded.
The T-PL can be paired to more than one heater meaning multiple heaters within the room can be controlled with the same T-PL thermostat.
Note: The T-PL will only work with Herschel XLS heaters. It is not possible to operate the T-PL with any other brand of infrared heater.
Contact Eco Friendly Heating for a supply and installation quote today.
Technical Specifications:
- Technical Specifications
-
Surface: PC+ ABS to UL94 fire retardant plastic
-
Plug: Moulded Plug
-
Voltage: 120 - 240VAC 50/60Hz
-
Power Supply: Mains
-
Protection Class: IPX0
-
Installation: Mains socket (wall)
-
Setpoint Range: 5-37°C
-
Radio Frequency: 433MHz
-
Wifi Band: 2.4GHz
-
Programming: 7 x 1 day programmable, 4 periods per day (via App)
-
Energy Saving: Open Window Energy Monitoring (only when paired with the SmartLife App)
-
App Control: Smartlife App Control
-
Voice Control: Works with Alexa and Google Assistant when paired with the SmartLife App
-
EU/ UK Electrical Safety: EN62368; EN62311
-
AUS/ NZ Electrical Safety: RCM Compliant. Low risk appliance.
-
Electromagnetic Certification: EN62479; EN50663
-
Radio Emissions Certification: EN300220-1&2; EN300328; EN301489-1;3;17
-
Restriction of Hazardous Substances (RoHS): IEC62321
-
Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls
-
Warranty: 2 Years
-
Note: Attempted use with any other heater brand will invalidate the warranty.
