Eco Friendly Heating

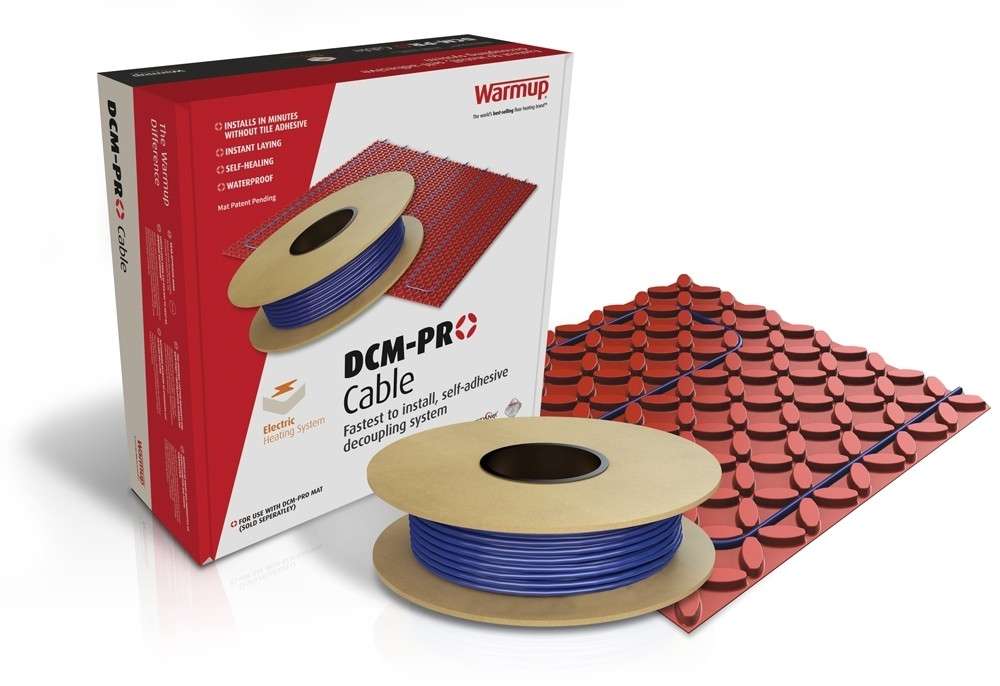

Electric Underfloor Heating DCM-PRO Cable - Standard Power

Electric Underfloor Heating DCM-PRO Cable - Standard Power

Regular price £104.87 GBP
Regular price Sale price £104.87 GBP
Sale Sold out
The Electric Underfloor Heating DCM-PRO Standard Power cable, is a flexible, dual-core heating wire designed to be easily laid within the Warmup DCM-PRO. This system provides powerful and efficient heating for a variety of floor finishes, while also protecting tiled surfaces from cracks caused by seasonal subfloor movement.

Order before 12pm for fastest delivery options

Shipping calculated at checkout.
PRODUCT CODE / AREA OUTPUT (W) LENGTH (M) PRICE
DCM-C-1 150W DCM-PRO Electric Heating Cable, 150 Watts, 1m² 10.9m Length
£104.87 GBP
DCM-C-1.5 225W DCM-PRO Electric Heating Cable, 225 Watts, 1.5m² 16.3m Length
£114.63 GBP
DCM-C-2 300W DCM-PRO Electric Heating Cable, 300 Watts, 2m² 21.8m Length
£137.74 GBP
DCM-C-2.5 375W DCM-PRO Electric Heating Cable, 375 Watts, 2.5m² 27.2m Length
£155.52 GBP
DCM-C-3 450 Watts DCM-PRO Electric Heating Cable, 450 Watts, 3m² 32.7m Length
£174.18 GBP
DCM-C-3.5 525W DCM-PRO Electric Heating Cable, 525 Watts, 3.5m² 38.1m Length
£196.39 GBP
DCM-C-4 600W DCM-PRO Electric Heating Cable, 4m² 43.5m Length
£219.50 GBP
DCM-C-4.5 675W DCM-PRO Electric Heating Cable, 675 Watts, 4.5m² 49m Length
£242.60 GBP
DCM-C-5 750W DCM-PRO Electric Heating Cable, 750 Watts, 5m² 54.4m Length
£274.59 GBP
DCM-C-6 900W DCM-PRO Electric Heating Cable, 900 Watts, 6m² 65.3m Length
£302.14 GBP
DCM-C-7 1050W DCM-PRO Electric Heating Cable, 1050 Watts, 7m² 76.2m Length
£338.58 GBP
DCM-C-8 1200W DCM-PRO Electric Heating Cable, 1200 Watts, 8m² 87.1m Length
£375.01 GBP
DCM-C-9 1350W DCM-PRO Electric Heating Cable, 1350 Watts, 9m² 98m Length
£421.22 GBP
DCM-C-10 1500W DCM-PRO Electric Heating Cable, 1500 Watts, 10m² 108.8m Length
£470.99 GBP
DCM-C-12 1800W DCM-PRO Electric Heating Cable, 1800 Watts, 12m² 130.6m Length
£530.53 GBP
DCM-C-14 2100W DCM-PRO Electric Heating Cable, 2100 Watts, 14m² 152.4m Length
£604.30 GBP
DCM-C-16 2400W DCM-PRO Electric Heating Cable, 2400 Watts, 16m² 174.1m Length
£686.94 GBP

Eco Friendly heating supplies top brands in electric underfloor hearting such as Warmup.

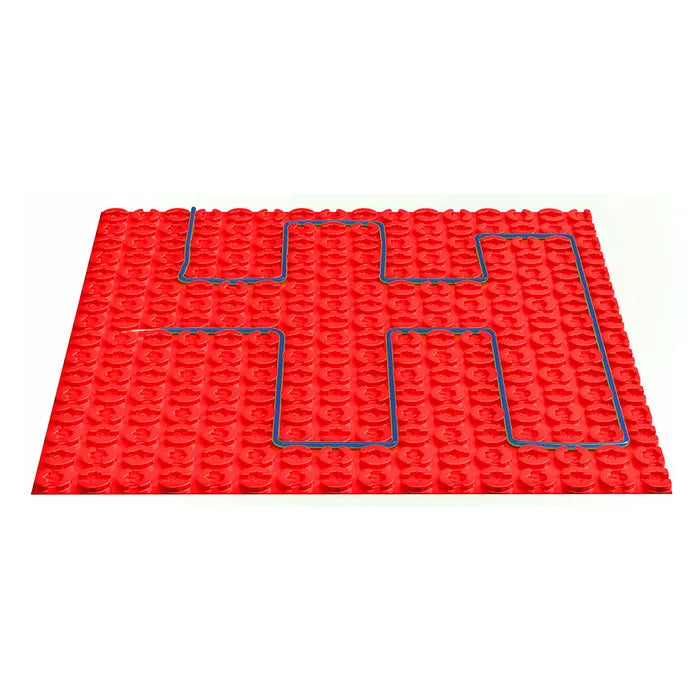

The DCM-Pro range of underfloor heating from Warmup provides unbeatable protection for tile floors. This cable is used with either DCM-PRO Peel-and-Stick or Fleece-Backed.

Two Heating Cable Options – Standard and Low Wattage

The DCM-PRO System offers a flexible heat output through the choice of two heating cables, allowing for a personalized heated area layout.

  • 112.5 W/m² to 225 W/m² Output for Standard Wattage Projects: The DCM-PRO with the Blue Cable provides an output of between 112.5 W/m² and 225 W/m², suitable for standard wattage projects based on your project's requirements.
  • 41.3 W/m² to 82.5 W/m² Output for Homes with Low Load Supplies: The DCM-PRO Low Wattage System features a flexible output of 41.3 W/m² to 82.5 W/m², making it ideal for homes with low load supplies and minimal heat loss. This system enables solar arrays with battery storage to supply a higher percentage of the load, contributing to a more sustainable, zero-carbon heating solution.

The low wattage DCM-PRO is rated for increased floor finish resistances of up to 3.0 tog and allows you to tailor the system to your power requirements.

Experience the benefits of easy installation, flexible heat output, and floor protection with the DCM-PRO Cable





Technical Specifications:

  • Operating voltage 220-240V: 50Hz
  • IP Rating IPX7
  • Colour Blue
  • Thickness 4.5mm (± 0.2mm)
  • Output rating 150w/m² (3 Castellations – 90mm)
  • Inner Insulation Advanced Fluoropolymer (ETFE)
  • Min. Insulation Temp 5°C
  • Connection 3M Long ‘Coldtail’ Connection
  • Approvals EUFH heating mat approvals EUFH heating mat approvals EUFH heating mat approvals
