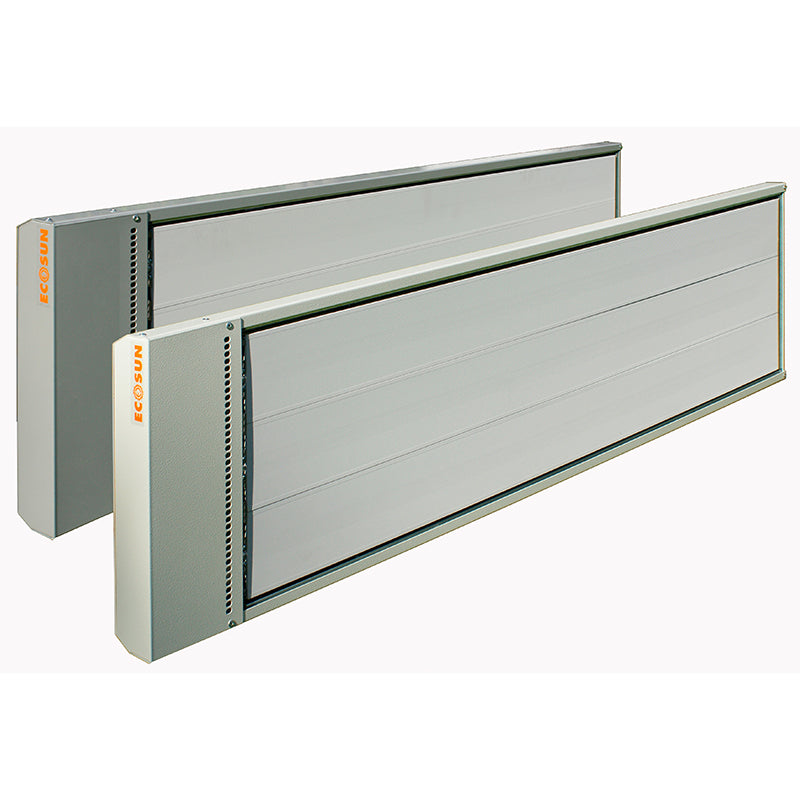

Ecosun infrared panels are an ideal way of providing thermal comfort in commercial and industrial buildings. They are specifically designed for high level mounting.

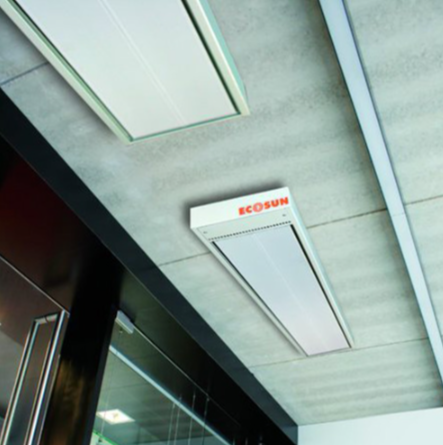

They can be horizontally ceiling mounted with an auxilliary frame or suspended on drop rods or chains. They are only 60mm deep and typical applications include large volume spaces where conventional warm air convection heating systems would be uneconomic.

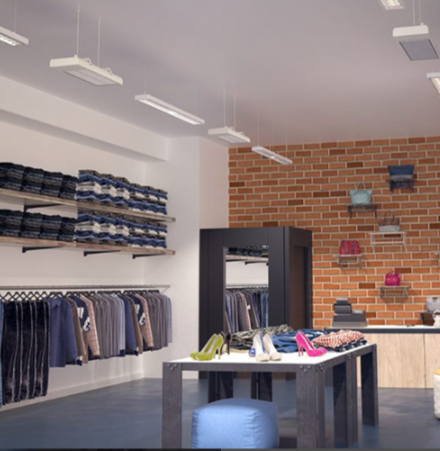

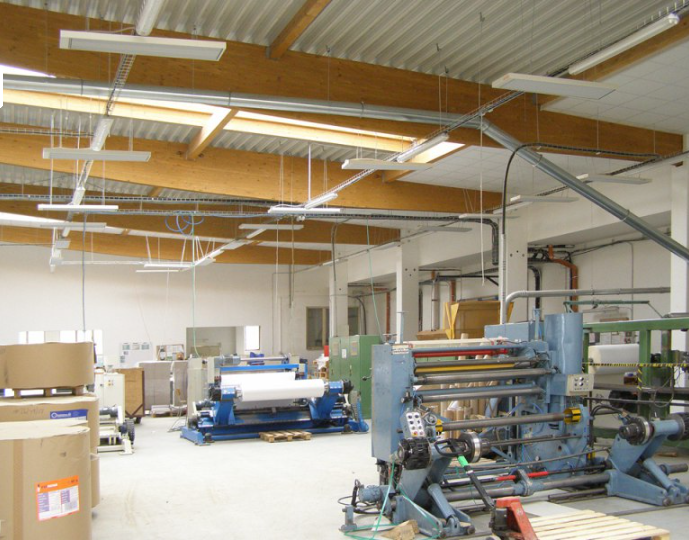

These include ; Supermarkets, Gymnasiums, Showrooms, Factories and Warehouses.
- Localised Heating- only warm the area required e.g. work stations
- Suspended or ceiling mounted. Ecosun radiant heat panels provide totally usable floor and wall space and reduce the risk of damage or
vandalism. - Higher ventilation and air extract rates do not significantly effect the radiant performance of Ecosun panels which primarily warm the fabric of the heated area.
- Gentle infrared heat results in improved comfort conditions at lower inside ambient temperature – providing comfort conditions at lower running costs.
- Infrared heating does not cause air convection currents, therefore minimising dust movement and provides a clean, draft free environment.

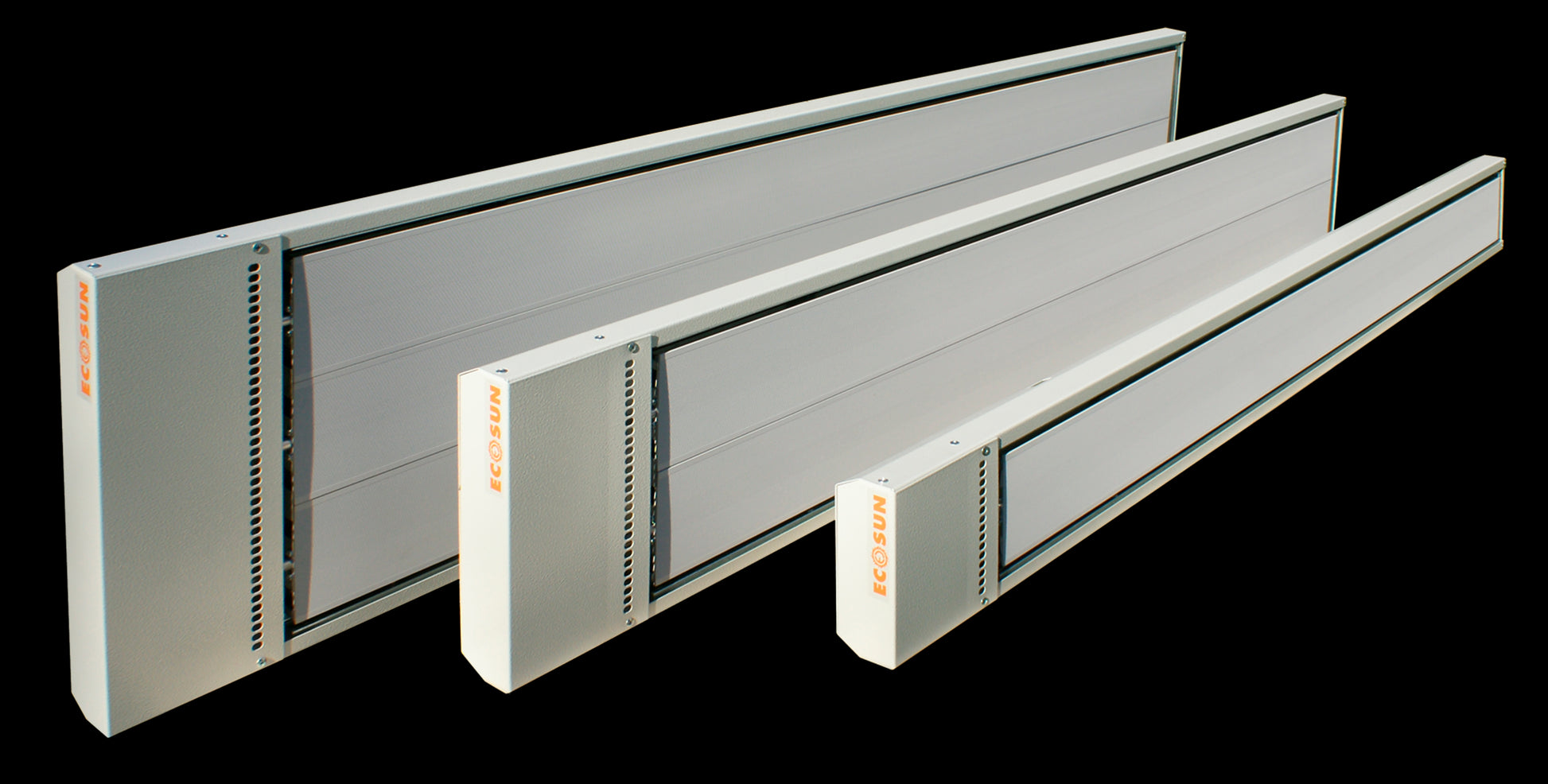

- Ecosun panels are constructed using a rod heating element encapsulated within a special aluminium extrusion profile. The surface area of the aluminium profile is treated with a silicating process which substancially increases its surface area and its ability to emit heat. The result is a high efficiency, low maintenance heater suitable for commercial and industrial environments.
Installation
Due to the high power outputs Ecosun electric heating panels must be installed the following minimum distances from:
- Radiant surfaces ( up to 260 C ) 1000mm
- From top edge of panel 100mm
- Wall 1500mm Floor 3500mm
FAQ's
What is the ECOSUN S+ radiant panel heater?
It’s a high-output infrared heating panel designed to provide powerful radiant warmth in large or demanding spaces.
Is the ECOSUN S+ energy efficient?
Yes. Infrared heating reduces wasted energy by warming people and surfaces directly, helping lower running costs.
Where is the ECOSUN S+ best used?
It’s ideal for workshops, warehouses, studios, commercial buildings, large rooms, and open-plan spaces.
Does it create air movement or noise?
No. The ECOSUN S+ operates silently without circulating air, improving comfort and reducing dust movement.
Can it be used as the main heat source?
Yes. When correctly sized and installed, it can provide primary heating in well-insulated spaces.
Contact Eco Friendly Heating and Flooring LTD for free design and consultation. Email us at info@eco-friendlyheating.co.uk or call on 07542 605660
Need help sizing this heater?
Start with our Infrared Heating Heat Loss Calculator for a useful starting point. For larger spaces, churches and commercial projects, our What is Infrared Heating? guide also explains why zoned radiant heating can outperform traditional systems.
