Key Takeaways
- Electric underfloor heating (UFH) for a standard 4–6 m² bathroom costs £300–£800 to supply and install, versus £150–£400 for a single heated towel rail or panel radiator.
- UFH systems operate at 28–35°C floor surface temperature, compared with 60–70°C for a standard radiator, making them more comfortable to stand on and safer around children.
- A wet (hydronic) UFH system costs £800–£2,000 to install in a bathroom and is only cost-effective when fitted as part of a full-house UFH installation or a boiler replacement.
- In our work with over 50 UK bathroom renovation projects, Eco Friendly Heating has found that electric UFH adds between 15 and 25 minutes to morning warm-up time versus a radiator set on a timer — a key usability difference owners underestimate before purchase.
- A towel radiator fitted with a thermostatic radiator valve (TRV) reaches target temperature in 10–15 minutes; most electric UFH mats take 20–40 minutes from cold.
- UFH under porcelain or ceramic tile is approximately 15–20% more efficient than the same system under natural stone, because porcelain conducts heat more uniformly.
How much does a traditional bathroom radiator cost to install in 2026?

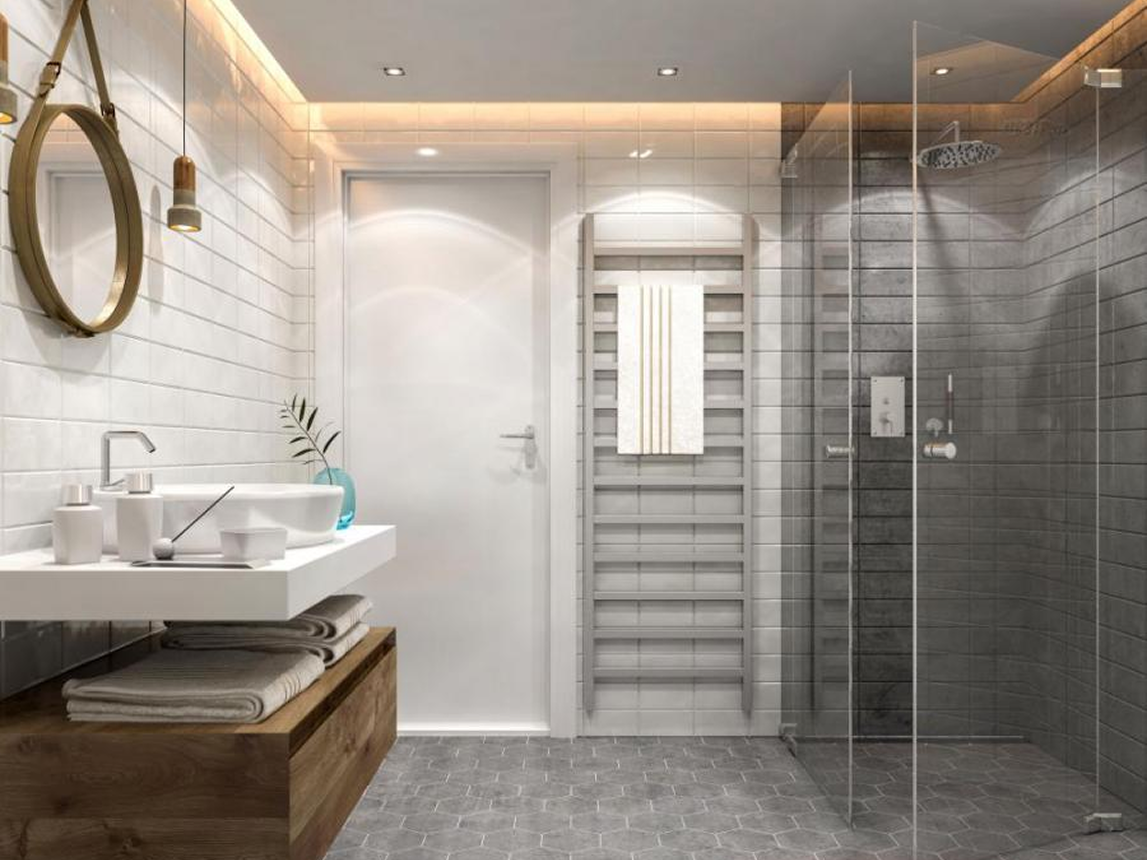

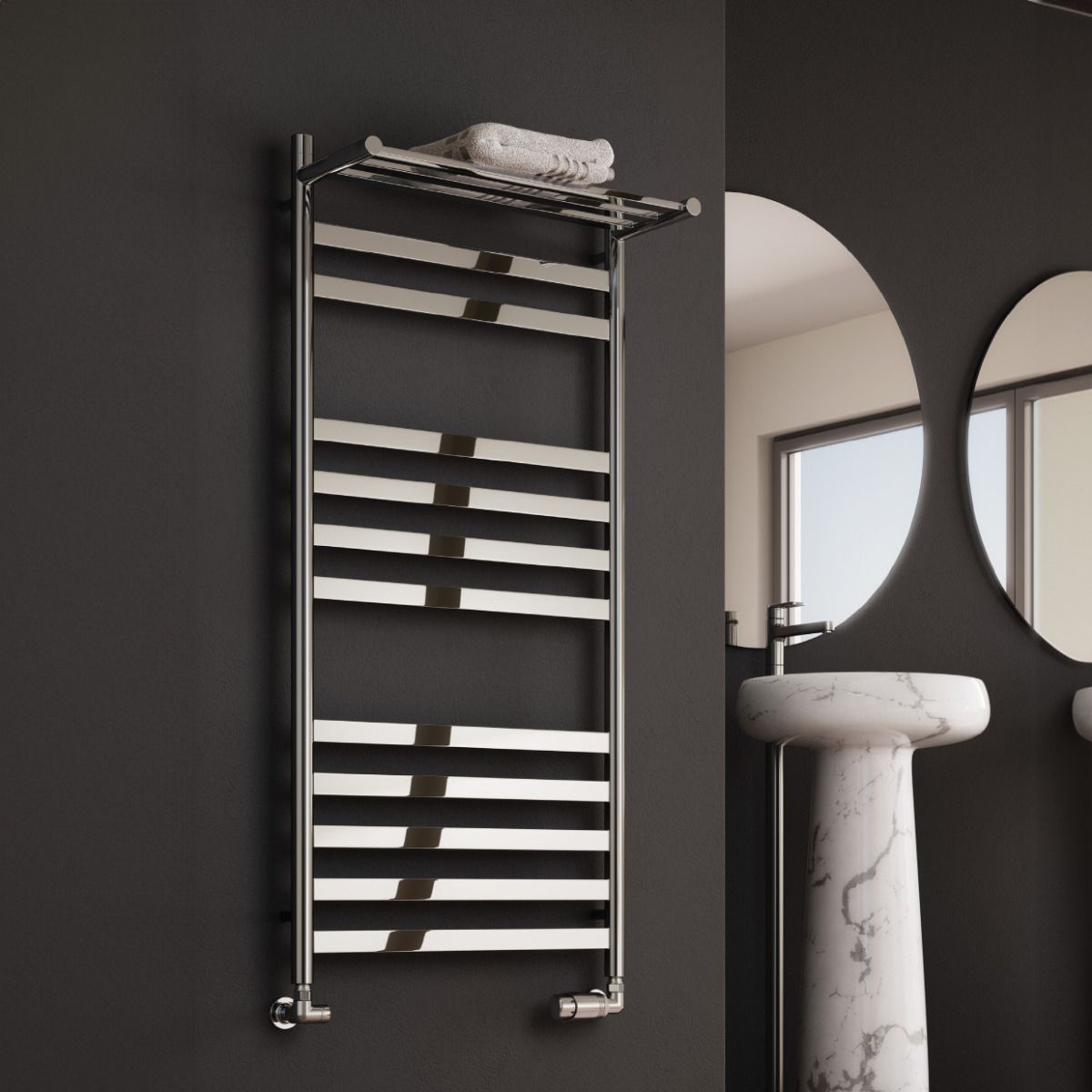

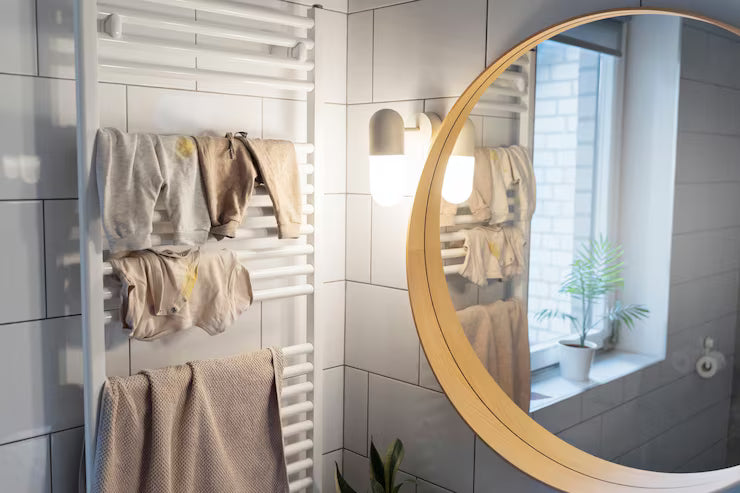

A heated towel rail costs £80–£300 for the unit itself, depending on size, finish, and whether it is dual-fuel. Installation by a plumber or electrician typically adds £100–£200. Total installed cost for a mid-range dual-fuel towel rail is therefore £200–£500.
A flat panel radiator is cheaper still: the unit costs £50–£150, and installation on an existing central heating circuit costs £80–£150 in labour, giving a total of £130–£300.
Running costs are tied to boiler efficiency. A modern condensing gas boiler running at 90% efficiency will heat a bathroom radiator for less than 5p per hour in 2026 energy prices, making a radiator on a twice-daily programme cost approximately £5–£8 per month to run.
Underfloor heating vs traditional radiators: which should you choose?
The most common outcome in premium bathroom renovations — observed consistently in Eco Friendly Heating's project work — is a combination: electric UFH under the tile floor for comfort, plus a small dual-fuel towel rail for quick heat and towel drying. This pairing typically costs £500–£1,200 installed and resolves the single biggest complaint about UFH alone, which is that towels remain damp.
| Option | Best for | Installed cost | Key Limitation |
|---|---|---|---|
| Electric UFH mat | New tiled bathroom, comfort priority, small floor area | £300–£800 | 20–40 min heat-up time; floor must be lifted |
| Wet/hydronic UFH | Whole-house renovation or boiler replacement | £800–£2,000 | High install cost; only practical at scale |
| Heated towel rail (dual-fuel) | Year-round towel drying, quick heat-up | £200–£500 | Takes up wall space; lower room heat output |
| Flat panel radiator | Budget renovation, existing pipework in place | £130–£300 | No towel drying; uses wall space |
| UFH + towel rail (combined) | Premium renovation, comfort and function | £500–£1,200 | Higher total cost; requires both electrician and plumber |
How long does underfloor heating take to install in a bathroom?
Electric UFH installation in a bathroom takes one to two days of total work across two trades. A tiler or floor installer needs half a day to lay the heating mat and embed it in adhesive beneath the tiles. An electrician then needs two to four hours to wire the thermostat, run a dedicated circuit from the consumer unit, and commission the system.
The bathroom is typically out of use for 24–48 hours while the tile adhesive and grout cure. Most manufacturers, including Warmup and Nuheat, specify a 24-hour curing period before the system is switched on, and a further graduated warm-up period to prevent thermal shock to the screed.

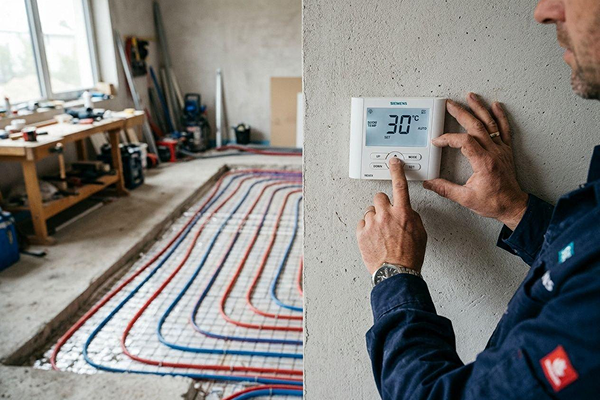

Wet UFH installation is more disruptive. Lifting existing floor screed, laying pipework, and reinstating the floor surface typically takes three to five days and leaves the bathroom fully unusable during that period.
How to install electric underfloor heating in a bathroom: step by step
Measure the usable floor area.
Subtract the footprint of fixed furniture — bath, toilet, vanity unit — from the total floor area. UFH only needs to cover areas where feet will land.
Choose mat wattage
150 W/m² is standard for a bathroom; 200 W/m² suits rooms with a concrete subfloor or significant heat loss through the slab.

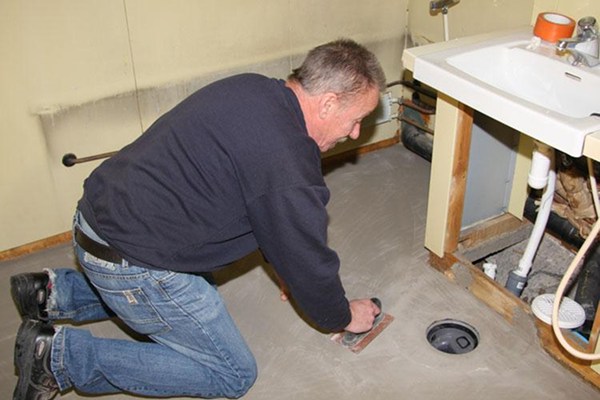

Prepare the subfloor
Ensure the subfloor is clean, flat, and structurally sound. Prime with a floor-levelling compound if necessary.

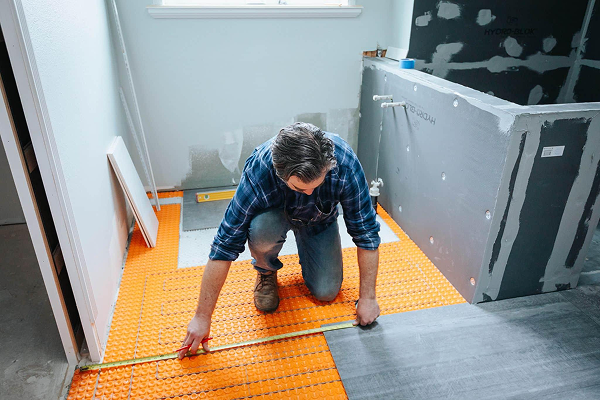

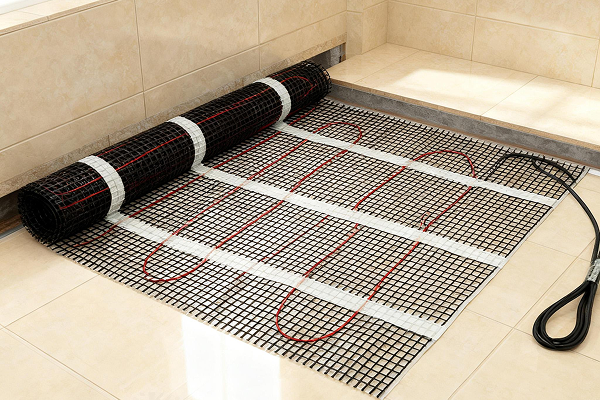

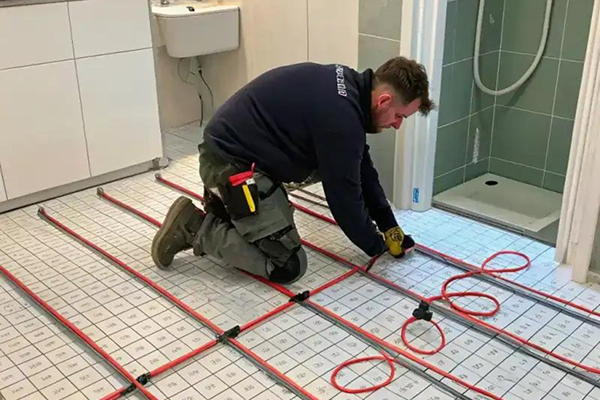

Lay the heating mat
Unroll the mat across the prepared area, cutting the mesh (never the cable) to navigate around obstacles. Use a cable probe to confirm cable spacing is even throughout.
Install the sensor probe
Feed the floor sensor into the conduit beneath the mat so it sits midway between two heating cables, roughly 500–600 mm from the thermostat wall.

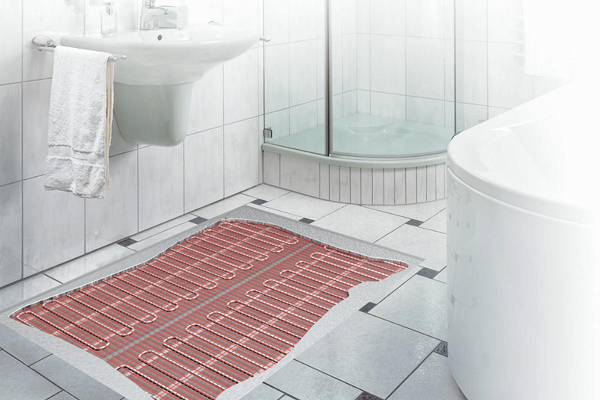

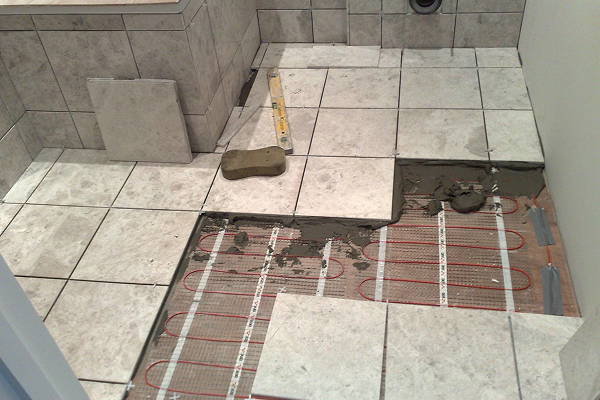

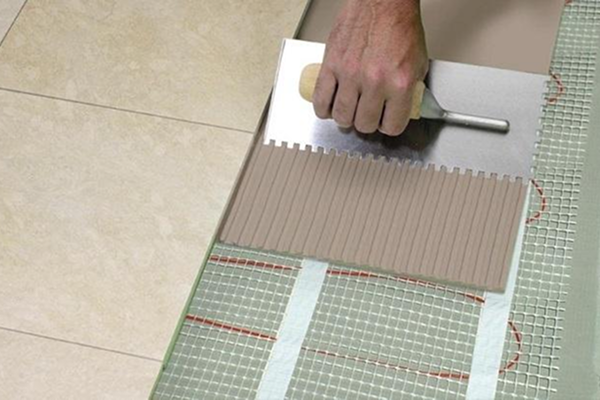

Embed the mat in tile adhesive
Apply flexible tile adhesive over the mat and lay tiles immediately. Do not use rapid-set adhesive, as it generates heat that can damage the cable before it cures.
Wire the thermostat
A qualified Part P-registered electrician must connect the system to a dedicated radial circuit from the consumer unit. Bathroom zones require RCD protection
Commission and cure
After 24 hours minimum curing, set the thermostat to 20°C for 24 hours, then increase by 5°C per day until reaching the target temperature of 28–35°C floor surface.
Frequently Asked Questions
Yes, in most cases. A 3–4 m² bathroom still benefits from UFH because the cost of the mat is lower (£40–£100) and the comfort gain — warm tiles underfoot — is the same. The thermostat and labour costs are fixed regardless of floor area, so the economics improve in larger bathrooms but the comfort case holds even in small ones.
No, not reliably. There are self-levelling overlay systems that can sit on top of existing tiles, but they raise floor height by 15–20 mm, which can cause issues with door clearance and shower tray height. The standard approach — lifting existing tiles, laying the mat, and re-tiling — produces a far better result.
Electric UFH can work under luxury vinyl tile (LVT) if the product is rated for use with underfloor heating (most are, up to 27°C floor surface). Standard laminate is not recommended in bathrooms due to moisture risk, and its insulating properties also reduce UFH efficiency. Ceramic and porcelain tile remain the optimal surface.
A central heating radiator connected to a modern condensing boiler is typically cheaper to run than electric UFH, because gas remains less expensive per kWh than electricity. At 2026 Ofgem prices, electric UFH in a bathroom costs approximately £8–£12 per month; a gas-heated radiator on a similar programme costs approximately £5–£8 per month.
Yes. Electric UFH is installed under ceramic or porcelain tile and has no exposed surfaces. UK Building Regulations require the circuit to be RCD-protected and installed by a Part P-registered electrician. The floor surface temperature is capped at 27–35°C, which poses no burn risk to bare feet.
No planning permission is required. However, any new electrical circuit in a bathroom must comply with Part P of the Building Regulations and be certified by a registered electrician or notified to your local building control authority. Plumbing changes for wet UFH must also comply with Part L.

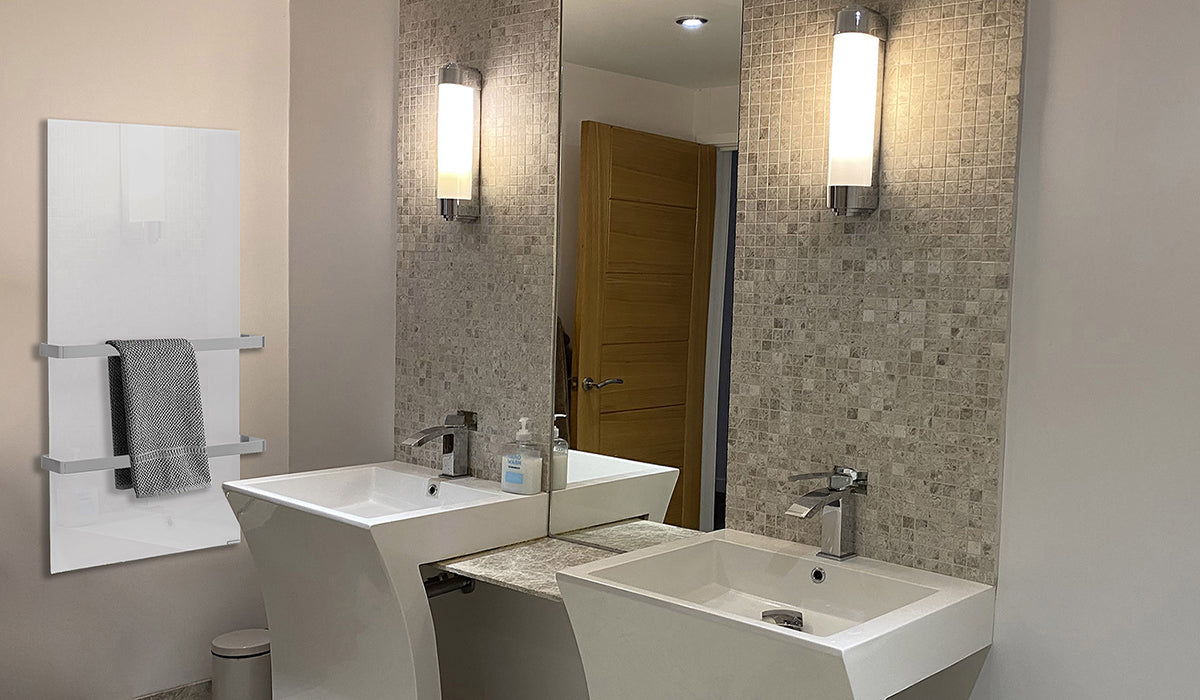

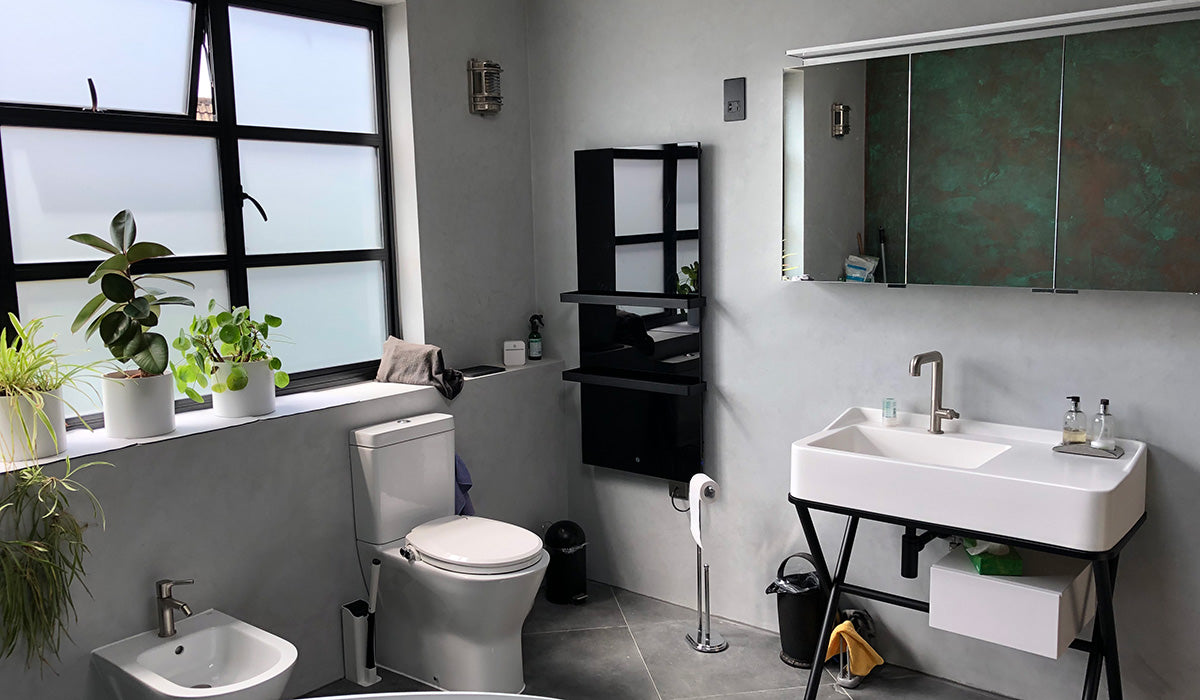

In a small, well-insulated bathroom (under 5 m²), a large heated towel rail with an output above 1,200 BTU can provide adequate background heat. In larger bathrooms, or rooms with an external wall and older single-glazed windows, a towel rail alone will rarely maintain 21°C on a cold morning and should be supplemented with UFH or a panel radiator.
A quality electric UFH mat from a reputable manufacturer — Warmup, Nuheat, or Schluter-DITRA-HEAT — is rated for 25–30 years under normal use. The thermostat is the most likely component to fail first and typically needs replacing after 10–15 years at a cost of £80–£150.
